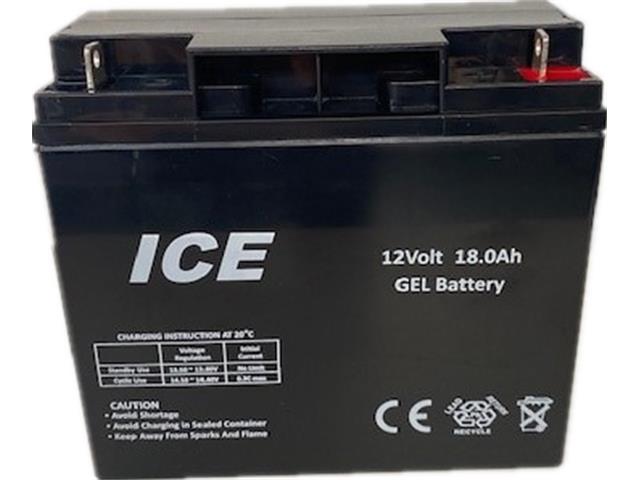

BATT 12V18G ICE

SKU: BATT 12V18G ICE

BRAND: ICE


Rechargeable Battery Gel 12V18Ah {L=181 W=77 H=167mm} F3 Terminal ID:5.4mm for M5 Bolt & Nut, 5.1Kg

12V18Ah Gel Rechargeable Battery

Specifications

    • Nominal Voltage : 12V
    • Rated Capacity (10hr Rate) : 18Ah
    • Dimensions
      • Length : 181mm (7.13 inches)
      • Width : 77 mm (3.03 inches)
      • Height : 167mm (6.57 inches)
      • Total Height : 167mm (6.57 inches)
      • Weight Approx : 5.1 Kg (11.22 lbs)

Characteristics

    • Capacity 77°F(25°C)
      • 20 hour rate (0.9 A) : 18.0 Ah
      • 10 hour rate (1.66A) : 16.6 Ah
      • 5 hour rate (3.0 A) : 15.3 Ah
      • 1 hour rate (10.8 A) : 10.8 Ah
      • 1.5 hour discharge to 10.5V : 6.8 A
    • Internal Resistance
      • Full Charged, 77°F(25°C) : 13.0mΩ
    • Affected By Temperature (10hr Rate)
      • 104°F(40°C) : 102%
      • 77°F(25°C) : 100%
      • 32°F(0°C) : 85%
      • 5°F(-15°C) : 65%
    • Self-Discharge 77°F(25°C)
      • Capacity after 3 month storage : 91%
      • Capacity after 6 month storage : 82%
      • Capacity after 12 month storag : 64%

Charge (Constant Voltage)

  • Initial Charge Current “LESS” than 5.4A
    • Cycle : 14.10V–14.40V
    • Float : 13.50V–13.80V

Downloads

Additional Information

Device Battery
Type 12V18Ah | Gel | Rechargeable
