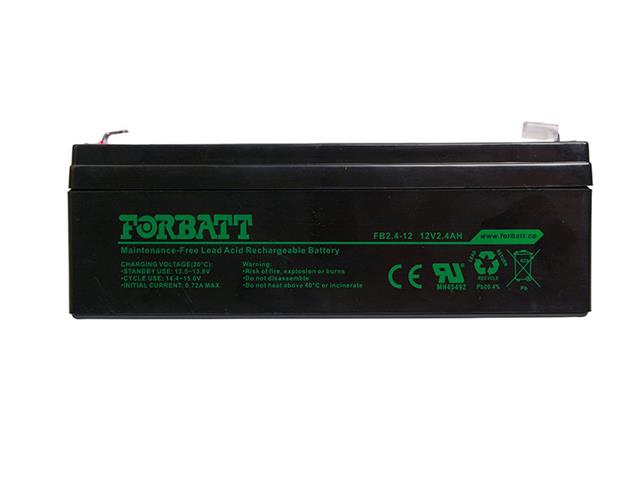

BATT 12V2,4 FBT

SKU: BATT 12V2,4 FBT

BRAND: Forbatt


12V2.4AH Rechargeable Battery L=178 W=35 H=61mm F1 Terminal 4.8mm 0.88Kg

12V2.4AH Rechargeable Battery

Specifications

    • Nominal Voltage : 12V
    • Rated Capacity : 2.4Ah
    • Dimensions
      • Total Height : 2.64 inches (67mm)
      • Height : 2.40 inches (61mm)
      • Length : 7.01 inches (178mm)
      • Width : 1.38 inches (35mm)
    • Approximate Weight : 1.94 lbs. (0.88kg)

Characteristic

  • Capacity 77°F(25°C)
    • 20h rate (0.12A) : 2.40Ah
    • 10h rate (0.21A) : 2.21Ah
    • 5h rate (0.41A) : 2.05Ah
    • 1h rate(1.56A) : 1.56Ah
  • Internal Resistance
    • Full Charged Battery 77°F(25°C) : Approx. 65mΩ
  • Capacity Affected by Temperature (20h rate) :
    • 104°F(40°C) : 102%
    • 77°F(25°C) : 100%
    • 32°F(0°C) : 85%
    • 5°F(-15°C) : 65%
    • .
  • Self-Discharge 68°F(20°C) (Capacity after)
    • 3 month storage : 90%
    • 9 month storage : 80%
    • 6 month storage : 60%
  • Initial Charge Current ""Less"" than 0.72A
  • Charge (Constant Voltage,25°C)
    • Cycle : 14.4-15.0V/77°F(25°C)
    • Stand By : 13.5-13.8V/77°F(25°C)

Downloads

Additional Information

Device Battery
Type Rechargeable
