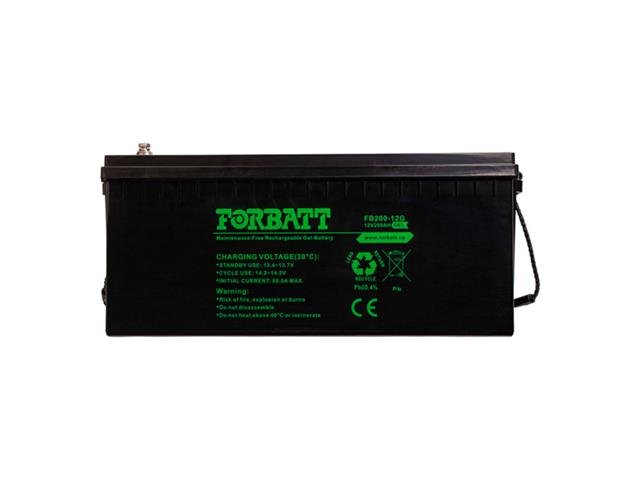

BATT 12V200G FBT

SKU: BATT 12V200G FBT

BRAND: Forbatt


Rechargeable Battery 12V200AH Gel { L=524 W=239 H=218mm } T11 Terminal M8 Stud 62kg

12V200AH Gel Rechargeable Battery

Specifications

    • Nominal Voltage : 12V
    • Rated Capacity (20hr Rate) : 200Ah
    • Dimensions
      • Length : 20.63inches (524mm)
      • Width : 9.41inches (239mm)
      • Height : 8.58inches (218mm)
      • Total Height : 8.90inches (226mm)
      • Weight : Approx. 0.49kg

Characteristics

    • Capacity 77°F(25°C)
      • 20hour rate (10.0 A) : 200Ah
      • 10hour rate (18.0 A) : 180Ah
      • 5hour rate (34.0 A) : 170Ah
      • 1hour rate (130 A) : 130Ah
    • Internal Resistance
      • Full Charged, 77°F(25°C) : 4mΩ
    • Affected By Temperature (10hr Rate)
      • 104°F(40°C) : 102%
      • 77°F(25°C) : 100%
      • 32°F(0°C) : 85%
      • 5°F(-15°C) : 65%
    • Self-Discharge 77°F(25°C)
      • Capacity after 3 month storage : 90%
      • Capacity after 6 month storage : 85%
      • Capacity after 9 month storag : 65%

Charge (Constant Voltage)

  • Initial Charge Current “LESS” than 0.42A
    • Cycle : 14.2–14.5V/77°F(25°C)
    • Stand By : 13.4–13.7V/77°F(25°C)

Downloads

Additional Information

Device Battery
Type 12V200AH | Gel | Rechargeable
