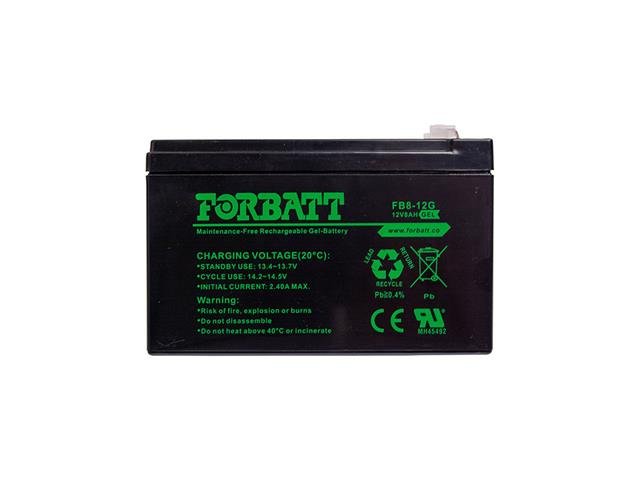

BATT 12V8G FBT

SKU: BATT 12V8G FBT

BRAND: Forbatt


12V 8AH Gel Rechargeable Battery 151x65x94mm

Sealed Gel Rechargeable Battery

Specifications

  • Nominal Voltage : 12V
  • Rated Capacity (20hr Rate) : 8Ah

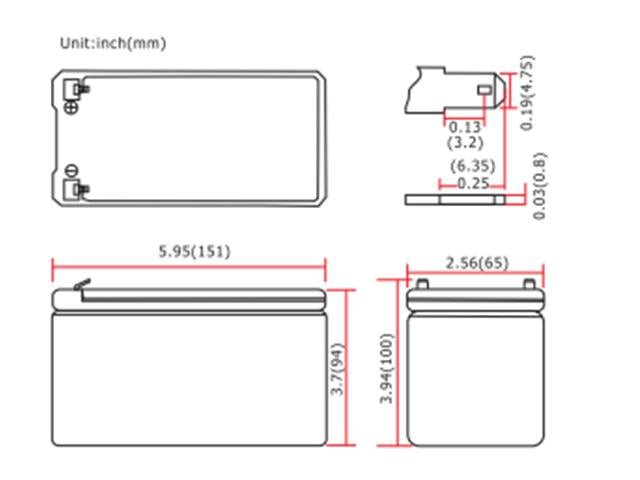

  • Dimensions(mm) : 151 x 65 x 94
  • Weight : Approx. 5.09lbs (2.31kg)
Capacity 77°F(25°C)
  • 20hour rate (0.40A) : 8.0Ah
  • 10hour rate (0.73A) : 7.3Ah
  • 5hour rate (1.36A) : 6.8Ah
  • 1hour rate (5.2A) : 5.2Ah
Internal Resistance
  • Full Charged, 77°F(25°C) : 23mΩ
Capacity Affected By Temperature (10hr Rate)
  • 104°F(40°C) : 102%
  • 77°F(25°C) : 100%
  • 32°F(0°C) : 85%
  • 5°F(-15°C) : 65%
Self-Discharge77°F(25°C)
  • Capacity after 3 month storage : 90%
  • Capacity after 6 month storage : 80%
  • Capacity after 9 month storage : 60%
Charge (Constant Voltage)
  • Initial Charge Current “LESS” than 2.16A
  • Cycle : 14.4–15.0V/77°F(25°C)
  • Stand By : 13.5–13.8V/77°F(25°C)

Downloads

Additional Information

Device Battery
Type Gel | Rechargeable
Electrochemical System Gel
Nominal Voltage 12V
Nominal Capacity 8AH
Rechargeable True
