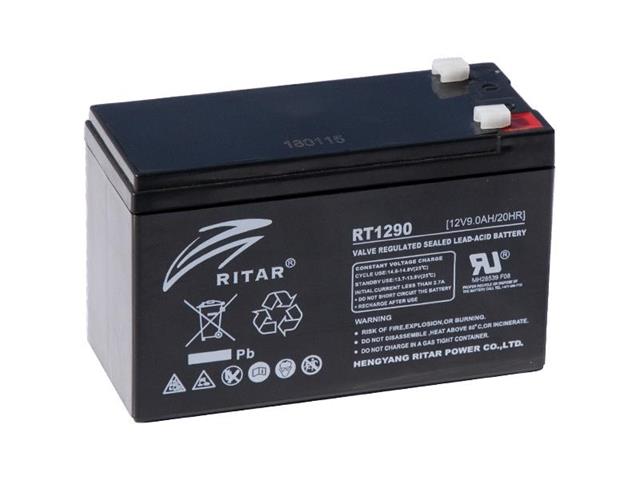

RT series is a general purpose battery with 5 years design life in
float service . It meets with IEC and JIS standards .With up-dated
AGM valve regulated technology and high purity raw materials, the
RT series battery has reliable standby service life. It is suitable for
UPS/EPS, medical equipment, emergency light and security
systems applications.
Specifications
Cells Per Unit : 6
Voltage Per Unit : 12
Capacity : 9.0Ah@20hr-rate to 1.75V per cell @25 C
Weight : Approx. 2.55Kg (Tolerance±4%)
Max. Discharge Current : 90 A (5 sec)
Internal Resistance : Approx. 18 mΩ
Operating Temperature Range :
Discharge: -20°C ~ 60°C
Charge: 0°C ~ 50°C
Storage: -20°C ~ 60°C
Normal Operating Temperature Range : 25 C±5 C
Float charging Voltage : 13.7 to 13.9 VDC/unit Average at 25°C
Recommended Maximum Charging Current Limit : 2.7 A
Equalization and Cycle Service : 14.6 to 14.8 VDC/unit Average at 25 °C
Terminal : Faston Tab 187(F1)/Faston tab 250(F2)
Constainer Material : A.B.S. UL94-HB, UL94-V0 Optional.
Power your devices with the BATT 12V9 RITA rechargeable battery, designed for reliability and longevity. With a 9Ah capacity and advanced AGM technology, it ensures optimal performance for UPS, medical equipment, and emergency lighting. Lightweight and durable, this versatile battery is your ultimate solution for dependable energy storage.
