BATT 48V100 LI-ION NVS

Name: BATT 48V100 LI-ION NVS - Communica [Part No: BATT 48V100 LI-ION NVS]
Brand: Navasolar
SKU: BATT 48V100 LI-ION NVS
Price: 24950 ZAR
Availability: InStock

SKU: BATT 48V100 LI-ION NVS

BRAND: Navasolar

In Stock
R 28,692.50_{(inc VAT)}
R 24,950.00_{(ex VAT)}

Collections: Loadshedding, Power

Type: Batteries

Category: Lithium Ion Rechargeable Battery, Loadshedding

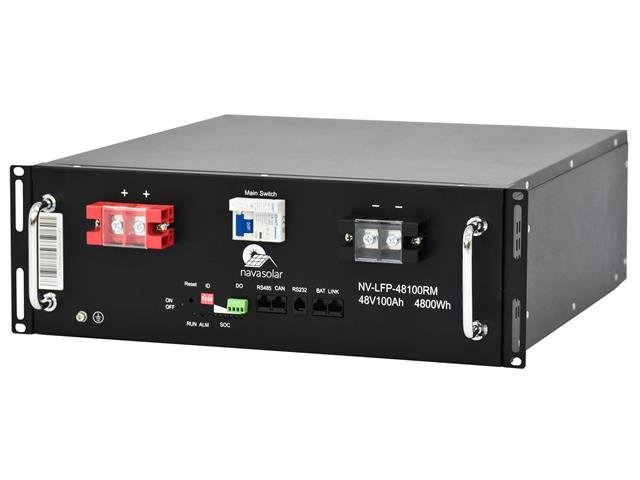

Navasolar Lithium Ion Rechargeable Battery 48V 100A 4.8KWH, OPV:42~53.5V, Charge Current:30A (100A Max), Discharge Current:100A,80% DoD, Cycle Life:>4000, Parallel MAX16, CAN/RS485, 442x470x154mm, 45kg, Only Compatible with: NAVA 5KX 48VDC

Lithium Ion Rechargeable Battery

Specifications

Nominal Voltage : 48V
Normal Capacity : 4.8kWh
Usable Capacity : 4.46kWh
Operating Voltage : 42 ~ 53.5V
Rated Charging Current : 30A (100A Max)
Rated Discharging Current : 100A
Max. Discharging Power : 4.2kW
Max Charging Power : 5.35kW

General Data

Dimension (W/D/H) : 442/470/154mm
Weight : 45Kg
Working Temperature : 0°C~+55°C
Storage Temperature : -20°C~+55°C

Features

DOD : 80%
Cycle Life : >4000 times
Parallel Connection : Max .16packs
Communication Port : CAN/RS485
Warranty : 5 Years

Downloads

Datasheet - BATT 48V100 LI-ION NVS

Additional Information

Device	Battery
Type	Lithium Ion \| Rechargeable
