BATT 48V50AC LI-ION PYL

SKU: BATT 48V50AC LI-ION PYL

BRAND: Pylontech

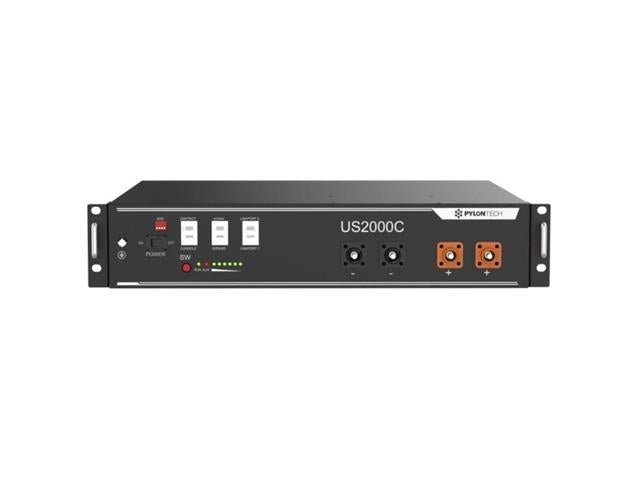

Pylontech Lithium Ion Rechargeable Battery US2000C 48V 50A 2.4KWH, Charge/Discharge Current 90A (Peak@15s), RS485/CAN, Discharge Voltage:44.5~53.5V, Charge/Voltage(V): 52.5~53.5, 6000 Cycles with 95% DOD, (442x410x89mm), 24kg

Lithium Ion Rechargeable Battery

Overview

The US2000C is an HESS solar battery system provided by Pylontech, developed with their own lithium iron phosphate cell to ensure the highest safety value and most promising life cycle.

The Pylontech US2000C has an incredible DoD of 95%

You can register the Pylon US2000C for an additional 3 years of manufacturer warranty for free. Go to http://www.pylontech.com.cn/service/support and complete the information in the 'sign up battery' page.

The US2000C can be used to expand an existing US2000 bank. Please note, the US2000C needs to be used as the master battery when used to expand an existing US2000 bank.

 Please note US2000C and US3000C batteries require different pin out on the communication cable when used with Solis RHI Hybrid inverters. Standard cable used with US2000B and US3000 will not work. Please make sure the correct cable is being used.

MAX DISCHARGE AND CHARGE RATE IS ONLY APPLICABLE FOR +- 60 SECONDS The maximum allowed voltage is 53.5V, please ensure that you check the inverter settings are below this BEFORE plugging in the UTILITY/SOLAR to the inverter.

Specifications

  • Nominal Voltage(V) : 48
  • Nominal Capacity (Wh) : 2400
  • Usable Capacity (Wh) : 2280
  • Dimension(mm) : 442*410*89
  • Weight(Kg) : 24
  • Discharge Voltage(V) : 44.5 ~ 53.5
  • Charge Voltage(V) : 52.5 ~ 53.5
  • Charge / Discharge Current(A)
  • 25(Recommend)
  • 50 (Max@60s)
  • 90 (Peak@15s)
  • Communication Port : RS485,CAN
  • Single string quantity(pcs) : 16
  • Working Temperature/°C : 0~50
  • Shelf Temperature/°C : -20~60
  • Humidity : 5%~95%
  • Altitude (m) : <2000
  • Design life : 15<sup>+</sup> Years(25°C/77°F)
  • Cycle Life : >6000, 25°C
  • Authentication Level : IEC62619/CE /UN38.3

Downloads

Additional Information

Device Battery
Type Lithium Ion | Rechargeable
