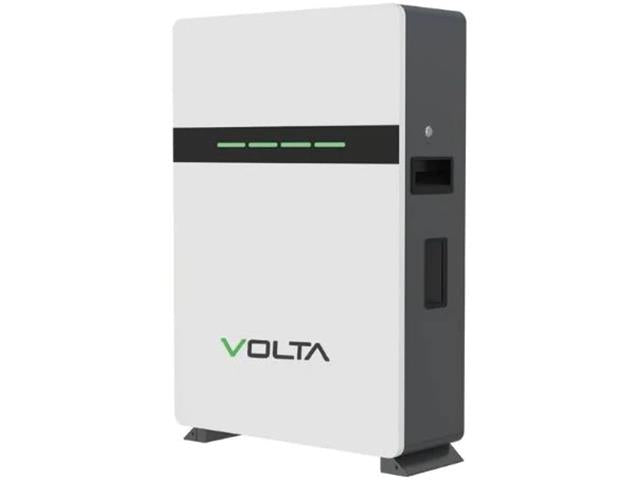

BATT 51,2V202A LI-ION VLT

SKU: BATT 51,2V202A LI-ION VLT

BRAND: Volta


Volta Stage 3 Wall Mount (LiFePO4) Rechargeable Battery 10.34KW, Normal Voltage:51.2V, Cell Type:LFP, STD Charge Voltage:56V, Max Discharge Current : 150A, Discharge Cut-Off Voltage:44.8V, Max 8 Parallel, 6000 Cycles 80%DoD, IP20, 480x650x225mm, 1C/1C,93K

Wall Mount (LiFePO4) Rechargeable Battery

Specifications

General Data

  • Battery Type: Lithium-Ion
  • Product Model: VOLTA STAGE 3
  • Nominal Energy: 10.34KWH
  • Nominal Voltage: 51.2VDC
  • Nominal Capacity: 202Ah
  • Cell Type: LFP
  • 1C/1C Continual Charge & Discharge
  • Standard Charge Voltage: 56VDC
  • Maximum Discharge Current: 150A
  • Discharge Cut-Off Voltage: 44.8VDC
  • Maximum Parallel Units: 8
  • Design Life: 6000 Cycles @ 80% DOD @ 25°C
  • Installation Type: Wall Mount & Floor Stand

Environment Limit

  • Ingress Protection: IP20
  • Charge Temperature Range: 0°C to +65°C
  • Discharge Temperature Range: -20°C to +65°C
  • Communication: RS485, RS232, CAN
  • Safety Rating: MSDS / UN38.3

Downloads

Additional Information

Device Battery
Type Wall Mount | LiFePO4 | Rechargeable
