BC184B

Name: BC184B - Communica [Part No: BC184B]
Brand: Communica
SKU: BC184B
Price: 0.47 ZAR
Availability: OutOfStock

SKU: BC184B

BRAND: Communica

Sold Out
R 0.54_{(inc VAT)}
R 0.47_{(ex VAT)}

Collections: Semiconductors

Type: Transistors

Category: NPN General Purpose Transistor

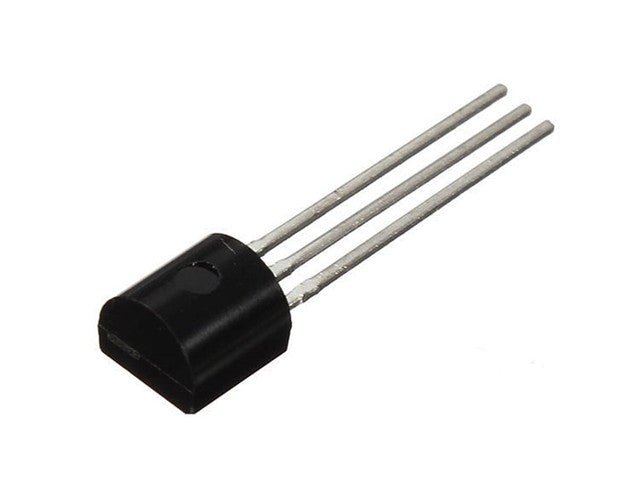

Transistor Silicon NPN

Specifications

Case	TO92
Vbr CBO	45
Vbr CEO	30
Max. PD (W)	300m
C(ob) (F)	5.0p
Derate (Amb) (W/°C)	2.4m
hfe	500=
Ic Max. (A)	200m
Icbo Max. @Vcb Max. (A)	15n
Polarity	NPN
Trans. Freq (Hz) Min.	150M
@VCE (test) (V)	5.0
Oper. Temp (°C) Max.	150
@Ic (A)	2.0m
Pinout Equivalence Number	3-12
Surface Mounted Yes/No	NO
Maximum Collector Power Dissipation (Pc)	0.3 W
Maximum Collector-Base Voltage \|Vcb\|	45 V
Maximum Collector-Emitter Voltage \|Vce\|	30 V
Maximum Emitter-Base Voltage \|Veb\|	5 V
Maximum Collector Current \|Ic max\|	0.2 A
Max. Operating Junction Temperature (Tj)	150 °C
Collector Capacitance (Cc)	5 pF
Transition Frequency (ft):	150 MHz
Forward Current Transfer Ratio (hFE), MIN	240

Additional Information

Device

Transistor

Elevate your electronics projects with the BC184B NPN Silicon Transistor. Designed for high efficiency and reliability, this transistor boasts a maximum collector current of 200mA and a transition frequency of 150MHz. Perfect for various applications, it ensures optimal performance in your circuits. Upgrade your components today and experience enhanced stability and power!
