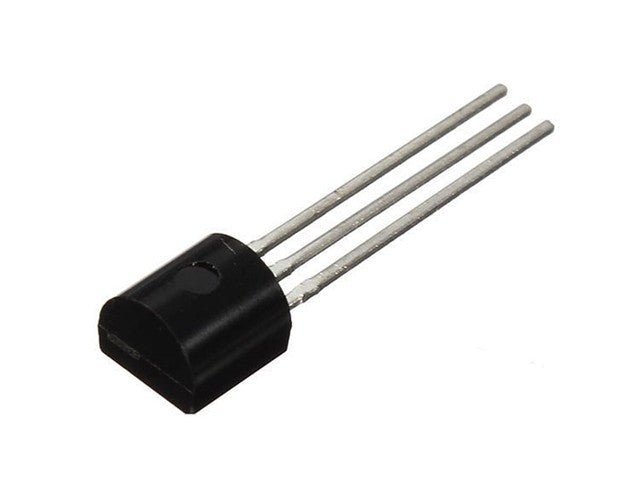

BC184L

Name: BC184L - Communica [Part No: BC184L]
Brand: Communica
SKU: BC184L
Price: 0.47 ZAR
Availability: OutOfStock

SKU: BC184L

BRAND: Communica

Sold Out
R 0.54_{(inc VAT)}
R 0.47_{(ex VAT)}

Collections: Semiconductors

Type: Transistors

Category: NPN General Purpose Transistor

N 45V 30V 200mA 450MN X10 Transistor

Transistor Silicon NPN

Specifications

Case	TO92
Vbr CBO	45
Vbr CEO	30
Max. PD (W)	500m
C(ob) (F)	7.0p
Derate (Amb) (W/°C)	2.4m
hfe	240
Ic Max. (A)	500m
Icbo Max. @Vcb Max. (A)	15n
Polarity	NPN
Trans. Freq (Hz) Min.	150M
@VCE (test) (V)	5.0
Oper. Temp (°C) Max.	150
@Ic (A)	2.0m
Pinout Equivalence Number	3-10
Surface Mounted Yes/No	NO
Maximum Collector Power Dissipation (Pc)	0.3 W
Maximum Collector-Base Voltage \|Vcb\|	45 V
Maximum Collector-Emitter Voltage \|Vce\|	30 V
Maximum Emitter-Base Voltage \|Veb\|	5 V
Maximum Collector Current \|Ic max\|	0.2 A
Max. Operating Junction Temperature (Tj)	150 °C
Collector Capacitance (Cc)	5 pF
Transition Frequency (ft):	150 MHz
Forward Current Transfer Ratio (hFE), MIN	240

Additional Information

Device

Transistor

Upgrade your electronics projects with the BC184L NPN Transistor, featuring high performance with a maximum collector current of 200mA and a transition frequency of 150MHz. Its robust design ensures reliability and efficiency, making it ideal for various applications. Experience superior power handling and thermal stability with this essential component for your circuit needs.
