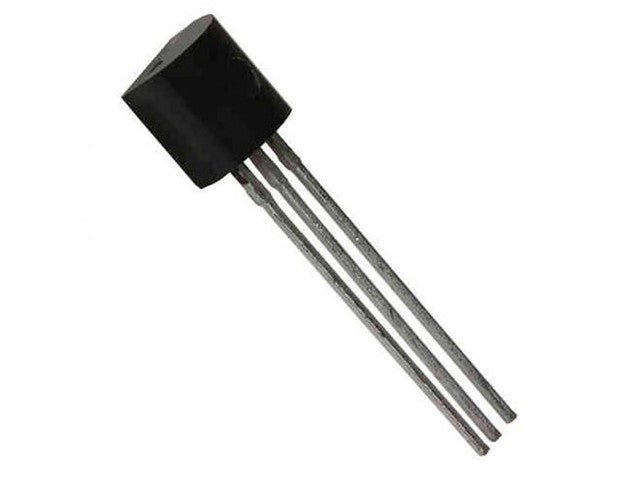

BC308C

Name: BC308C - Communica [Part No: BC308C]
Brand: Communica
SKU: BC308C
Price: 0.39 ZAR
Availability: InStock

SKU: BC308C

BRAND: Communica

R 0.45_{(inc VAT)}
R 0.39_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Transistors

Category: PNP General Purpose Transistor

30V 25V 100MA 450MN X10 Transistor

Transistor Silicon PNP

Specifications

Case	TO92
Vbr CBO	30
Vbr CEO	25
Max. PD (W)	250m
C(ob) (F)	6.0p
Derate (Amb) (W/°C)	3.0m
hfe	120
Ic Max. (A)	100m
Icbo Max. @Vcb Max. (A)	15n
Polarity	PNP
Trans. Freq (Hz) Min.	150M
@VCE (test) (V)	5.0
Oper. Temp (°C) Max.	125
@Ic (A)	2.0m
Pinout Equivalence Number	3-17
Surface Mounted Yes/No	NO
Maximum Collector Power Dissipation (Pc)	0.3 W
Maximum Collector-Base Voltage \|Vcb\|	30 V
Maximum Collector-Emitter Voltage \|Vce\|	25 V
Maximum Emitter-Base Voltage \|Veb\|	5 V
Maximum Collector Current \|Ic max\|	0.1 A
Max. Operating Junction Temperature (Tj)	125 °C
Collector Capacitance (Cc)	8 pF
Transition Frequency (ft):	100 MHz
Forward Current Transfer Ratio (hFE), MIN	75

Additional Information

Device

Transistor

Upgrade your electronics with the BC308C PNP Transistor, featuring a robust 30V collector-base voltage and 100mA collector current. Ideal for reliable performance in various applications, this silicon transistor ensures efficient operation with a maximum power dissipation of 0.3W. Experience superior signal amplification and stability in your projects today!
