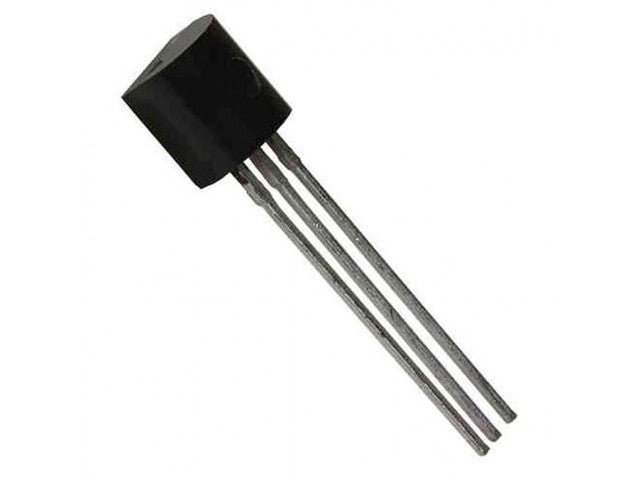

BC413

Name: BC413 - Communica [Part No: BC413]
Brand: Communica
SKU: BC413
Price: 0.45 ZAR
Availability: InStock

SKU: BC413

BRAND: Communica

R 0.52_{(inc VAT)}
R 0.45_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Transistors

Category: NPN General Purpose Transistor

N 45V 30V 100mA Transistor

Transistor Silicon NPN

Specifications

Case	TO92
Vbr CBO	45
Vbr CEO	30
Max. PD (W)	620m
C(ob) (F)	2.5p
Derate (Amb) (W/°C)	2.5m
t(f) Max. (S)	250n+
hfe	250
Ic Max. (A)	200m
Icbo Max. @Vcb Max. (A)	15n
Polarity	NPN
Tr Max. (s)	70n
Trans. Freq (Hz) Min.	250M
@VCE (test) (V)	5.0
Oper. Temp (°C) Max.	150
@Ic (A)	2.0m
Pinout Equivalence Number	3-12
Surface Mounted Yes/No	NO
Maximum Collector Power Dissipation (Pc)	0.3 W
Maximum Collector-Base Voltage \|Vcb\|	45 V
Maximum Collector-Emitter Voltage \|Vce\|	30 V
Maximum Emitter-Base Voltage \|Veb\|	5 V
Maximum Collector Current \|Ic max\|	0.1 A
Max. Operating Junction Temperature (Tj)	150 °C
Collector Capacitance (Cc)	5 pF
Transition Frequency (ft):	250 MHz
Forward Current Transfer Ratio (hFE), MIN	180

Additional Information

CatGroup	Transistor
Device	Transistor

The BC413 NPN transistor is your go-to solution for reliable electronic performance. With a high transition frequency of 250 MHz and maximum collector current of 100 mA, it delivers excellent efficiency for a wide range of applications. Upgrade your projects with this durable, compact TO92 case transistor, designed for optimal thermal management and long-lasting operation.
