BC817-25

Name: BC817-25 - Communica [Part No: BC817-25]
Brand: Communica
SKU: BC817-25
Price: 0.65 ZAR
Availability: InStock

SKU: BC817-25

BRAND: Communica

R 0.75_{(inc VAT)}
R 0.65_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Transistors

Category: NPN General Purpose Transistor

N 50V 45V SI AF/RF AMP Driver Switch SOT23 500mA

500 mA NPN, 45 V Transistor

Specifications

Maximum DC Collector Current Idc	500mA
Maximum Collector Emitter Voltage Vceo	45V

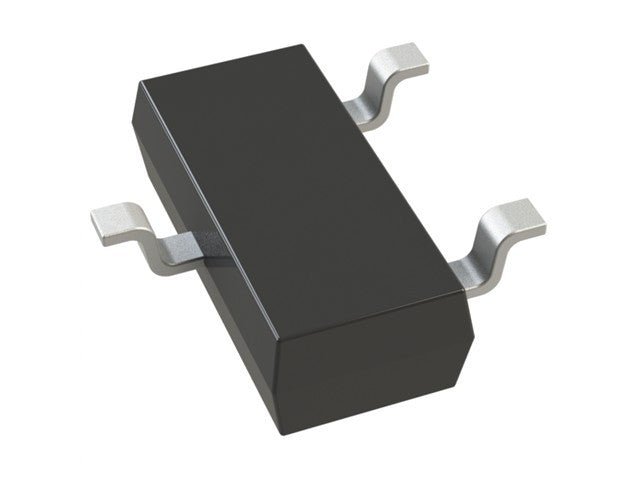

Package Type	SOT-23
Mount Type	Surface
Transistor Configuration	Single
Maximum Collector Base Voltage VCBO	50V
Minimum Operating Temperature	-65°C
Maximum Emitter Base Voltage VEBO	5V
Minimum DC Current Gain hFE	160
Transistor Polarity	NPN
Maximum Power Dissipation Pd	250mW
Maximum Transition Frequency ft	100MHz
Pin Count	3
Maximum Operating Temperature	150°C
Series	BC817
Width	2.5 mm
Height	1.11mm
Standards/Approvals	RoHS
Length	3mm

Additional Information

Device

Transistor

Enhance your electronic projects with the BC817-25 NPN transistor, delivering reliable performance with a maximum current of 500mA and voltage ratings up to 45V. Perfect for amplifying signals, this compact SOT-23 package ensures efficient space-saving solutions. Upgrade your circuits with this high-gain transistor, designed for durability and optimal power dissipation.
