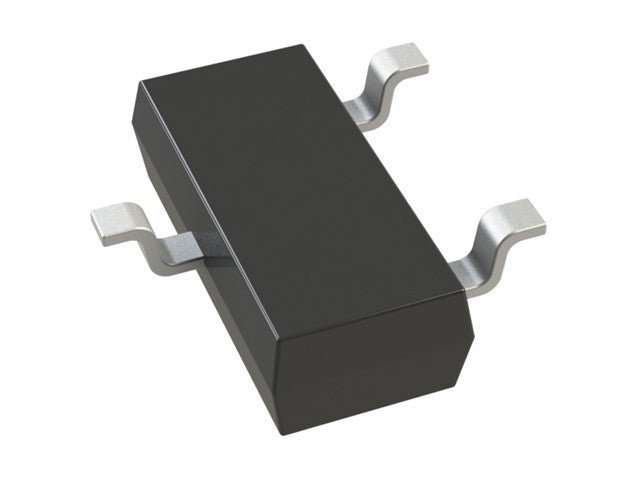

BC847A

Name: BC847A - Communica [Part No: BC847A]
Brand: Communica
SKU: BC847A
Price: 0.23 ZAR
Availability: InStock

SKU: BC847A

BRAND: Communica

R 0.26_{(inc VAT)}
R 0.23_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Transistors

Category: NPN General Purpose Transistor

N 45V 100MA 110/220 100MHZ SOT23

N 45V 100MA Transistor

Specifications

Maximum DC Collector Current Idc	100mA
Maximum Collector Emitter Voltage Vceo	45V
Package Type	SOT-23
Mount Type	Surface
Transistor Configuration	Single
Maximum Collector Base Voltage VCBO	50V
Maximum Transition Frequency ft	100MHz
Minimum DC Current Gain hFE	110
Transistor Polarity	NPN
Maximum Power Dissipation Pd	250mW
Minimum Operating Temperature	-65°C
Maximum Emitter Base Voltage VEBO	6V
Maximum Operating Temperature	150°C
Pin Count	3
Length	2.9mm
Series	BC847
Standards/Approvals	RoHS
Height	1mm
Width	1.3 mm

Additional Information

Device

Transistor

Discover the BC847A NPN Transistor, perfect for your electronic projects. With a maximum voltage of 45V and current of 100mA, it ensures reliable performance. The compact SOT-23 package allows easy surface mounting, making it an ideal choice for efficient circuit design. Enhance your devices with this high-frequency, low-power solution today!
