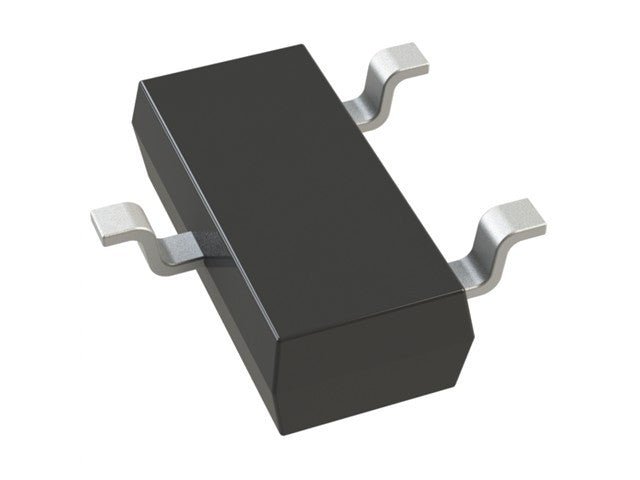

BC847B

Name: BC847B - Communica [Part No: BC847B]
Brand: Communica
SKU: BC847B
Price: 0.49 ZAR
Availability: InStock

SKU: BC847B

BRAND: Communica

R 0.56_{(inc VAT)}
R 0.49_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Transistors

Category: NPN General Purpose Transistor

N 45V 100MA 200/450 100MHZ SOT23

N 45V 100MA Transistor

Specifications

Maximum DC Collector Current Idc	100mA
Maximum Collector Emitter Voltage Vceo	45V
Package Type	SOT-23
Mount Type	Surface
Transistor Configuration	Single
Maximum Collector Base Voltage VCBO	50V
Maximum Power Dissipation Pd	250mW
Transistor Polarity	NPN
Minimum DC Current Gain hFE	200
Maximum Emitter Base Voltage VEBO	6V
Minimum Operating Temperature	-65°C
Maximum Transition Frequency ft	100MHz
Pin Count	3
Maximum Operating Temperature	150°C
Width	1.4 mm
Height	1.1mm
Length	3mm
Standards/Approvals	RoHS

Additional Information

Device

Transistor

Discover the BC847B NPN transistor, designed for optimal performance with a maximum collector current of 100mA and voltage of 45V. This compact SOT-23 package is perfect for efficient electronic applications, ensuring reliability and durability with a high gain of 200. Upgrade your projects with this versatile transistor for superior signal processing and power management.
