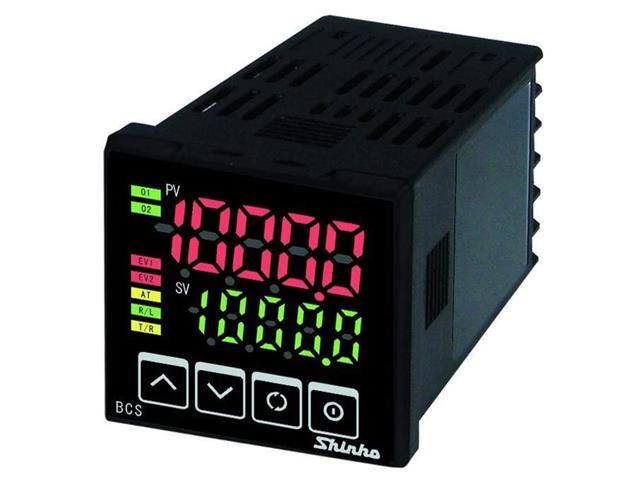

BCS2 R00-00 digital controller SHINKO with universal inputs, 5 digit LED display PV and SV, 9 step program function, IP 66 frontal protection, quick setting functions and 5 year ELPRO warranty ! They are often called temperature regulators , although many different sensors (temperature, humidity, pressure, etc.) can be connected to the universal input.

• Model size customized, well visible LED 5 digit (5 digit) PV and SV display with a lot of information
• Model size customized “easy to press” function keys
• Depth 60 mm
• AT function at startup
• Power Supply 100-240 V AC
• Dimensions 48 x 48 mm
• Standard EN61010-1 (Pollution degree 2, Overvoltage category II)

Advantages

• Easy configuration method (commonly used one-step settings)
• Easy settings in program mode (1 program, 9 steps)
• Event output 1 built-in as standard, freely configurable, eg alarm 1
• IP 66 protection
• Easier and faster management of settings via USB interface (initial setup, logging and control)

• Universal Input : TC, RTD, current, voltage
• Output : Relay Contact
• Event output 1 built-in as standard (eg alarm 1)
• Input signal sampling time : 125 ms
• Dimensions : 48 x 48 mm
• Depth : 60 mm
• Power Supply : 100-240 V Ac
• IP66 frontal
• EN61010-1 (Pollution degree 2, Overvoltage category II)
• Weight : 110 g

1. Datasheet - BCS2-R00-00

Device	Indicating Controller
Type	Digital
