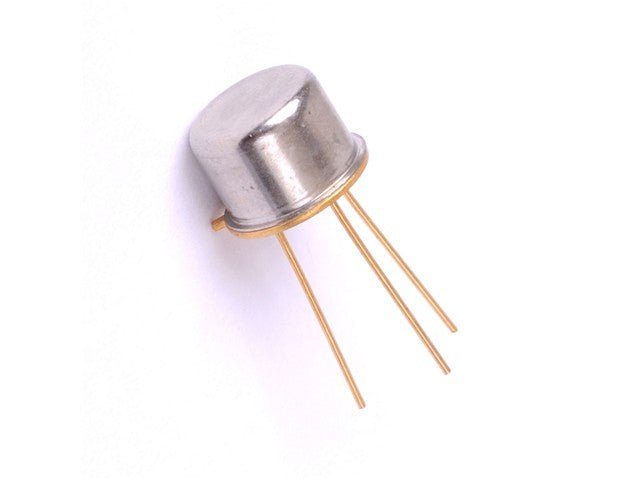

BD115

Name: BD115 - Communica [Part No: BD115]
Brand: Communica
SKU: BD115
Price: 4.05 ZAR
Availability: InStock

SKU: BD115

BRAND: Communica

R 4.66_{(inc VAT)}
R 4.05_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Transistors

Category: NPN Power Transistor

N 245V 180V 150MA 22MN TO39

Transistor Silicon NPN

Specifications

Case	TO39
Vbr CBO	245
Vbr CEO	180
Max. hFE	60-
Min hFE	22
Ic Max. (A)	150m
@Ic (test) (A)	50m
Icbo Max. @Vcb Max. (A)	550u
Polarity	NPN
R(sat) (Û)	90m
Derate Above 25°C	80m
Trans. Freq (Hz) Min.	145M
Oper. Temp (°C) Max.	175
@VCE (V)	100
Pinout Equivalence Number	3-12
Surface Mounted Yes/No	NO
Maximum Collector Power Dissipation (Pc)	6 W
Maximum Collector-Base Voltage \|Vcb\|	245 V
Maximum Collector-Emitter Voltage \|Vce\|	180 V
Maximum Emitter-Base Voltage \|Veb\|	5 V
Maximum Collector Current \|Ic max\|	0.15 A
Max. Operating Junction Temperature (Tj)	200 °C
Transition Frequency (ft):	80 MHz
Forward Current Transfer Ratio (hFE), MIN	22

Additional Information

Device

Transistor

Experience reliable performance with the BD115 NPN Transistor, designed for high-voltage applications with a maximum collector voltage of 245V and current of 150mA. Its robust construction ensures efficiency and longevity, making it ideal for your electronic projects. Upgrade your circuit reliability today!
