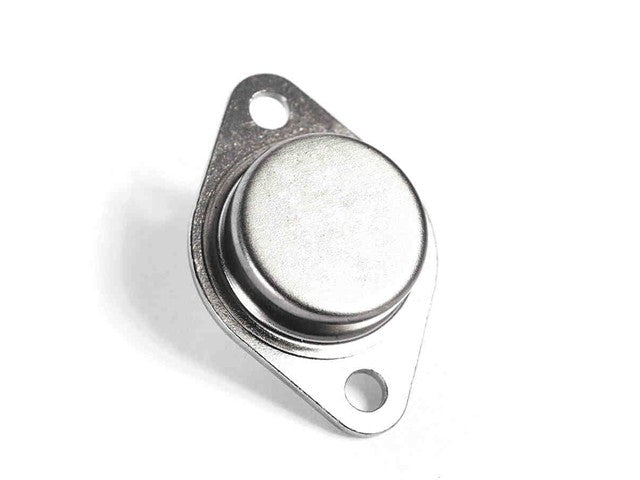

BD130

Name: BD130 - Communica [Part No: BD130]
Brand: Communica
SKU: BD130
Price: 0.45 ZAR
Availability: InStock

SKU: BD130

BRAND: Communica

R 0.52_{(inc VAT)}
R 0.45_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Transistors

Category: NPN Power Transistor

Bipolar Transistor General Purpose NPN VcBo = 100, VcE0 =60, icMax = 15A, Ptot = 100W, Hfe = 20 Ft = 1Mhz, TO3 - Metal Pkg.

Bipolar General Purpose Transistor

Specifications

Case	TO3
Vbr CBO	100
Vbr CEO	60
Max. PD (W)	100
Max. hFE	70
Min hFE	20
Ic Max. (A)	15
@Ic (test) (A)	4.0
Icbo Max. @Vcb Max. (A)	5.0m
Polarity	NPN
Derate Above 25°C	666m
Trans. Freq (Hz) Min.	1.1M
Oper. Temp (°C) Max.	175
@VCE (V)	4.0
Pinout Equivalence Number	4-30
Surface Mounted Yes/No	NO
Maximum Collector Power Dissipation (Pc)	100 W
Maximum Collector-Base Voltage \|Vcb\|	100 V
Maximum Collector-Emitter Voltage \|Vce\|	60 V
Maximum Emitter-Base Voltage \|Veb\|	7 V
Maximum Collector Current \|Ic max\|	15 A
Max. Operating Junction Temperature (Tj)	200 °C
Transition Frequency (ft):	1 MHz
Forward Current Transfer Ratio (hFE), MIN	20

Additional Information

Device

Transistor

Unlock the power of reliable performance with the BD130 General Purpose NPN Bipolar Transistor. With a maximum collector current of 15A and a power dissipation of 100W, this durable TO3 metal package transistor is perfect for your electronic projects. Experience enhanced efficiency and stability in your circuits with a transition frequency of 1MHz and robust voltage ratings, making it an essential component for any DIY enthusiast or professional. Upgrade your electronics with the BD130 today!
