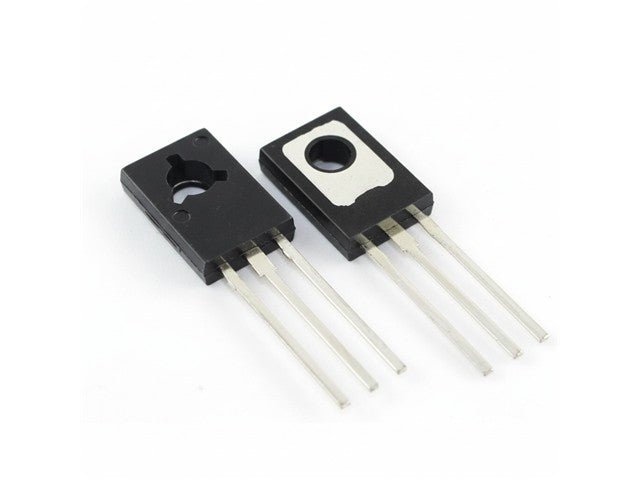

BD131

Name: BD131 - Communica [Part No: BD131]
Brand: Communica
SKU: BD131
Price: 5.88 ZAR
Availability: InStock

SKU: BD131

BRAND: Communica

R 6.76_{(inc VAT)}
R 5.88_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Transistors

Category: NPN Power Transistor

N 70V 45V 3A 40MN TO126

Transistor Silicon NPN

Specifications

Case	TO126
Vbr CBO	1.0k
Vbr CEO	1.0k
Ckts Per Dev.	1
Max. PD (W)	15
t(f) Max. (S)	3.0u
Min hFE	100
Ic Max. (A)	3.0
@Ic (test) (A)	50
Icbo Max. @Vcb Max. (A)	5.0u
Polarity	NPN
Tr Max. (s)	3.0u
R(sat) (Û)	800m
Therm Res. (J-C)	300m
Derate Above 25°C	166m
VCE(sat) Max.	2.5
Trans. Freq (Hz) Min.	60M
Oper. Temp (°C) Max.	125
@VCE (V)	12
Isolated Case (Y/N)	Yes
Pinout Equivalence Number	3-15
Surface Mounted Yes/No	NO
Maximum Collector Power Dissipation (Pc)	11 W
Maximum Collector-Base Voltage \|Vcb\|	70 V
Maximum Collector-Emitter Voltage \|Vce\|	45 V
Maximum Emitter-Base Voltage \|Veb\|	5 V
Maximum Collector Current \|Ic max\|	3 A
Max. Operating Junction Temperature (Tj)	125 °C
Transition Frequency (ft):	60 MHz
Forward Current Transfer Ratio (hFE), MIN	40

Additional Information

Device

Transistor

Upgrade your electronics with the BD131 NPN transistor, featuring a robust 3A current capacity and a maximum power dissipation of 11W. Ideal for reliable performance in high-frequency applications, this transistor ensures efficient operation up to 125°C. Enhance your projects with this durable and versatile component today!
