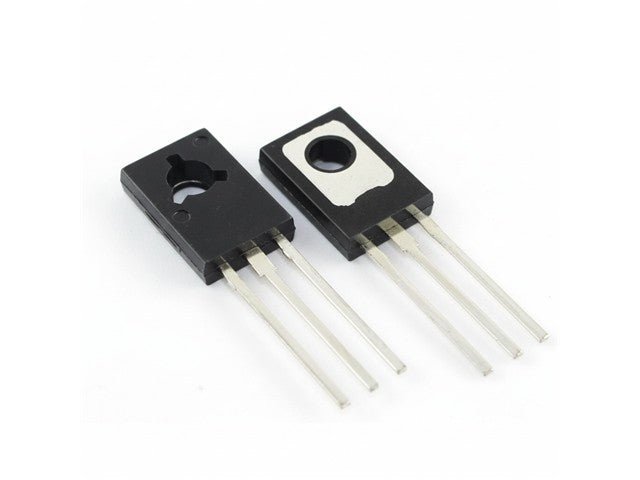

BD135

Name: BD135 - Communica [Part No: BD135]
Brand: Communica
SKU: BD135
Price: 1.68 ZAR
Availability: InStock

SKU: BD135

BRAND: Communica

R 1.93_{(inc VAT)}
R 1.68_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Transistors

Category: NPN Power Transistor

N 45V 45V 1A 40/250 TO126 Transistor

Transistor Silicon NPN

Specifications

Case	TO126
Vbr CBO	45
Vbr CEO	45
Max. PD (W)	8.0
Max. hFE	250
Min hFE	40
Ic Max. (A)	1.5
@Ic (test) (A)	150m
Icbo Max. @Vcb Max. (A)	100n
Polarity	NPN
Derate Above 25°C	100m
Trans. Freq (Hz) Min.	250M
Oper. Temp (°C) Max.	150
@VCE (V)	2.0
Pinout Equivalence Number	3-10
Surface Mounted Yes/No	NO
Maximum Collector Power Dissipation (Pc)	12 W
Maximum Collector-Base Voltage \|Vcb\|	45 V
Maximum Collector-Emitter Voltage \|Vce\|	45 V
Maximum Emitter-Base Voltage \|Veb\|	5 V
Maximum Collector Current \|Ic max\|	1 A
Max. Operating Junction Temperature (Tj)	150 °C
Transition Frequency (ft):	50 MHz
Forward Current Transfer Ratio (hFE), MIN	40

Additional Information

Device

Transistor

Elevate your projects with the BD135 NPN transistor, designed for reliability and efficiency. With a maximum collector current of 1A and a power dissipation of 12W, it ensures optimal performance in high-frequency applications. Perfect for hobbyists and professionals alike, this transistor offers robust thermal stability and superior gain, making it an essential component for your electronic designs.
