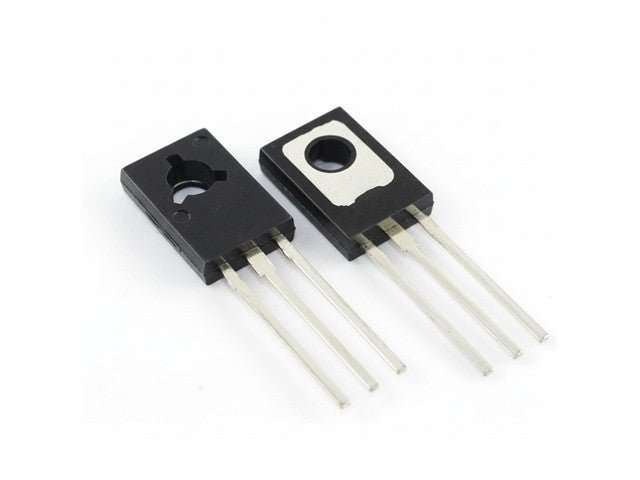

BD177

Name: BD177 - Communica [Part No: BD177]
Brand: Communica
SKU: BD177
Price: 2.22 ZAR
Availability: InStock

SKU: BD177

BRAND: Communica

R 2.55_{(inc VAT)}
R 2.22_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Transistors

Category: NPN Power Transistor

N 60V 60V 3A 5V 30W 40MN TO126 Transistor

Transistor Silicon NPN

Specifications

Case	TO126
Vbr CBO	60
Vbr CEO	60
Max. PD (W)	30
Min hFE	15
Ic Max. (A)	3.0
@Ic (test) (A)	1.0
Icbo Max. @Vcb Max. (A)	100u
Polarity	NPN
R(sat) (Û)	800m
Derate Above 25°C	240m
Trans. Freq (Hz) Min.	3.0M
Oper. Temp (°C) Max.	140
@VCE (V)	2.0
Pinout Equivalence Number	3-10
Surface Mounted Yes/No	NO
Maximum Collector Power Dissipation (Pc)	30 W
Maximum Collector-Base Voltage \|Vcb\|	60 V
Maximum Collector-Emitter Voltage \|Vce\|	60 V
Maximum Emitter-Base Voltage \|Veb\|	5 V
Maximum Collector Current \|Ic max\|	3 A
Max. Operating Junction Temperature (Tj)	135 °C
Transition Frequency (ft):	3 MHz
Forward Current Transfer Ratio (hFE), MIN	40

Additional Information

Device

Transistor

Enhance your electronic projects with the BD177 NPN Transistor. With a robust 60V rating and 3A max current, this reliable silicon transistor ensures optimal performance in various applications. Its compact TO126 package and high frequency make it perfect for efficient circuit designs. Upgrade your components today for superior reliability and efficiency!
