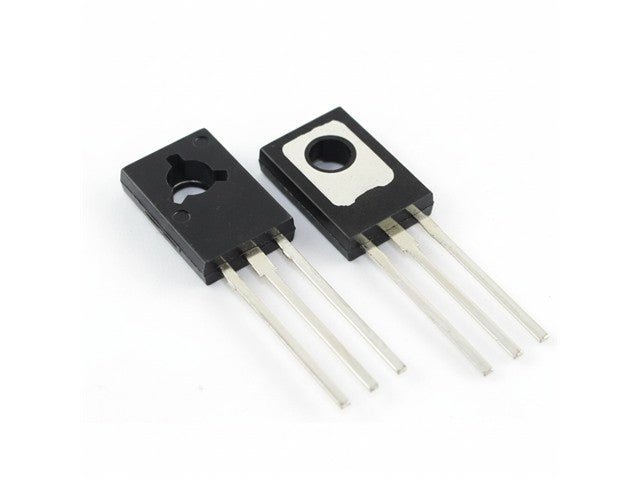

BD178

Name: BD178 - Communica [Part No: BD178]
Brand: Communica
SKU: BD178
Price: 2.30 ZAR
Availability: InStock

SKU: BD178

BRAND: Communica

R 2.65_{(inc VAT)}
R 2.30_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Transistors

Category: NPN Power Transistor

P 60V 60V 3A 5V 30W 40MN TO126 Transistor

Transistor Silicon NPN

Specifications

Case	TO126
Vbr CBO	60
Vbr CEO	60
Max. PD (W)	30
Derate (Amb) (W/°C)	240m
Min hFE	15
Ic Max. (A)	3.0
@Ic (test) (A)	1.0
Icbo Max. @Vcb Max. (A)	100u
Polarity	PNP
R(sat) (Û)	800m
Trans. Freq (Hz) Min.	3.0M
Oper. Temp (°C) Max.	140
@VCE (V)	2.0
Pinout Equivalence Number	3-10
Surface Mounted Yes/No	NO
Maximum Collector Power Dissipation (Pc)	30 W
Maximum Collector-Base Voltage \|Vcb\|	60 V
Maximum Collector-Emitter Voltage \|Vce\|	60 V
Maximum Emitter-Base Voltage \|Veb\|	5 V
Maximum Collector Current \|Ic max\|	3 A
Max. Operating Junction Temperature (Tj)	135 °C
Transition Frequency (ft):	3 MHz
Forward Current Transfer Ratio (hFE), MIN	40

Additional Information

Device

Transistor

The BD178 is a powerful NPN transistor designed for high-performance applications, offering a maximum collector current of 3A and power dissipation of 30W. With a robust voltage rating of up to 60V, this transistor ensures reliability and efficiency in your electronic projects. Upgrade your circuits with the BD178 for superior performance and enhanced durability.
