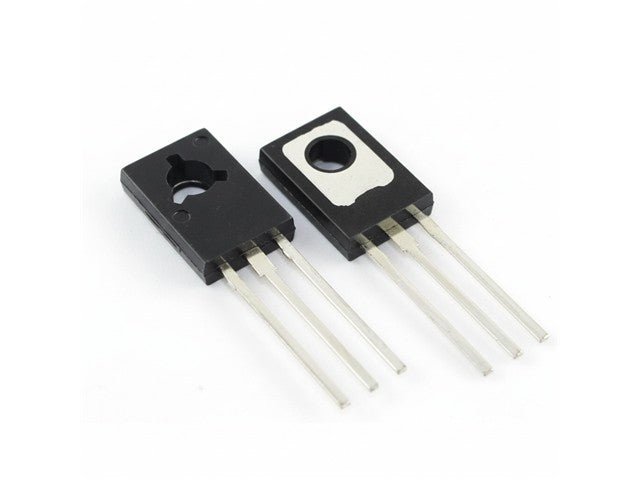

BD236

Name: BD236 - Communica [Part No: BD236]
Brand: Communica
SKU: BD236
Price: 3.63 ZAR
Availability: InStock

SKU: BD236

BRAND: Communica

R 4.17_{(inc VAT)}
R 3.63_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Transistors

Category: PNP Power Transistor

P 60V 60V 2A 25MN TO126 Transistor

Transistor Silicon PNP

Specifications

Case	TO126
Vbr CBO	60
Vbr CEO	60
Max. PD (W)	25
Derate (Amb) (W/°C)	200m
t(f) Max. (S)	700n-+
Max. hFE	250
Min hFE	40
Ic Max. (A)	2.0
@Ic (test) (A)	150m
Icbo Max. @Vcb Max. (A)	100u
Polarity	PNP
Tr Max. (s)	300n-
R(sat) (Û)	600m
Trans. Freq (Hz) Min.	3.0M
Oper. Temp (°C) Max.	150
@VCE (V)	2.0
Pinout Equivalence Number	3-10
Surface Mounted Yes/No	NO
Maximum Collector Power Dissipation (Pc)	25 W
Maximum Collector-Base Voltage \|Vcb\|	60 V
Maximum Collector-Emitter Voltage \|Vce\|	60 V
Maximum Emitter-Base Voltage \|Veb\|	5 V
Maximum Collector Current \|Ic max\|	2 A
Max. Operating Junction Temperature (Tj)	150 °C
Transition Frequency (ft):	3 MHz
Forward Current Transfer Ratio (hFE), MIN	25

Additional Information

Device

Transistor

Unlock superior performance with the BD236 PNP Transistor. With a maximum collector current of 2A and a voltage rating of 60V, this reliable transistor ensures efficient power management for your electronic projects. Ideal for high-frequency applications, it delivers stability and durability, making it a must-have for any tech enthusiast. Upgrade your circuits with the BD236 today!
