BD433

Name: BD433 - Communica [Part No: BD433]
Brand: Communica
SKU: BD433
Price: 2.75 ZAR
Availability: InStock

SKU: BD433

BRAND: Communica

R 3.16_{(inc VAT)}
R 2.75_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Transistors

Category: NPN Power Transistor

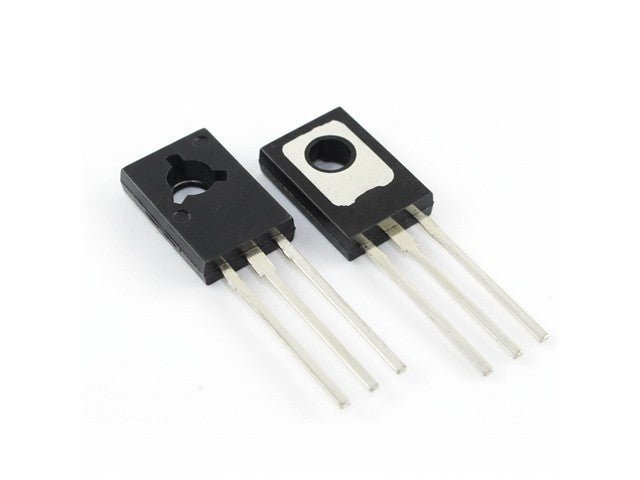

N 22V 22V 4A 50MN TO126 Transistor

Transistor Silicon NPN

Specifications

Case	TO126
Vbr CBO	22
Vbr CEO	22
Max. PD (W)	36
Min hFE	25
Ic Max. (A)	4.0
@Ic (test) (A)	2.0
Icbo Max. @Vcb Max. (A)	50u
Polarity	NPN
R(sat) (Û)	250m
Derate Above 25°C	285m
Trans. Freq (Hz) Min.	7.0M
Oper. Temp (°C) Max.	150
@VCE (V)	1.0
Pinout Equivalence Number	3-10
Surface Mounted Yes/No	NO
Maximum Collector Power Dissipation (Pc)	36 W
Maximum Collector-Base Voltage \|Vcb\|	22 V
Maximum Collector-Emitter Voltage \|Vce\|	22 V
Maximum Emitter-Base Voltage \|Veb\|	5 V
Maximum Collector Current \|Ic max\|	4 A
Max. Operating Junction Temperature (Tj)	150 °C
Transition Frequency (ft):	3 MHz
Forward Current Transfer Ratio (hFE), MIN	50

Additional Information

Device

Transistor

The BD433 NPN transistor delivers superior performance with a maximum collector current of 4A and a power dissipation of 36W. Engineered for robustness, it operates efficiently up to 150°C, making it ideal for demanding applications. Upgrade your electronics with this reliable transistor for enhanced circuit stability and longevity.
