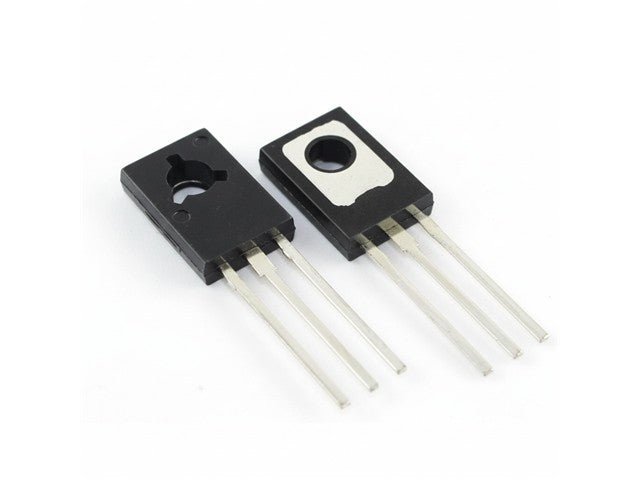

BD435

Name: BD435 - Communica [Part No: BD435]
Brand: Communica
SKU: BD435
Price: 2.75 ZAR
Availability: InStock

SKU: BD435

BRAND: Communica

R 3.16_{(inc VAT)}
R 2.75_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Transistors

Category: NPN Power Transistor

N 32V 32V 4A 50MN TO126 Transistor

Specifications

Type	Transistor Silicon NPN
Case	TO126
Vbr CBO	32
Vbr CEO	32
Max. PD (W)	36
Min hFE	25
Ic Max. (A)	4.0
@Ic (test) (A)	10m
Icbo Max. @Vcb Max. (A)	50u
Polarity	NPN
R(sat) (Û)	250m
Derate Above 25°C	285m
Trans. Freq (Hz) Min.	7.0M
Oper. Temp (°C) Max.	150
@VCE (V)	5.0
Pinout Equivalence Number	3-10
Surface Mounted Yes/No	NO
Maximum Collector Power Dissipation (Pc)	36 W
Maximum Collector-Base Voltage \|Vcb\|	32 V
Maximum Collector-Emitter Voltage \|Vce\|	32 V
Maximum Emitter-Base Voltage \|Veb\|	5 V
Maximum Collector Current \|Ic max\|	4 A
Max. Operating Junction Temperature (Tj)	150 °C
Transition Frequency (ft):	3 MHz
Forward Current Transfer Ratio (hFE), MIN	50

Additional Information

CatGroup

Transistor

Unlock the potential of your electronic projects with the BD435 NPN Transistor. With a robust 32V rating and a maximum collector current of 4A, this silicon transistor ensures reliable performance in demanding applications. Its high power dissipation capability and excellent frequency response make it ideal for amplifying signals and driving loads efficiently. Upgrade your circuits with the BD435 for superior reliability and efficiency.
