BD535

Name: BD535 - Communica [Part No: BD535]
Brand: Communica
SKU: BD535
Price: 10.26 ZAR
Availability: InStock

SKU: BD535

BRAND: Communica

R 11.80_{(inc VAT)}
R 10.26_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Transistors

Category: NPN Power Transistor

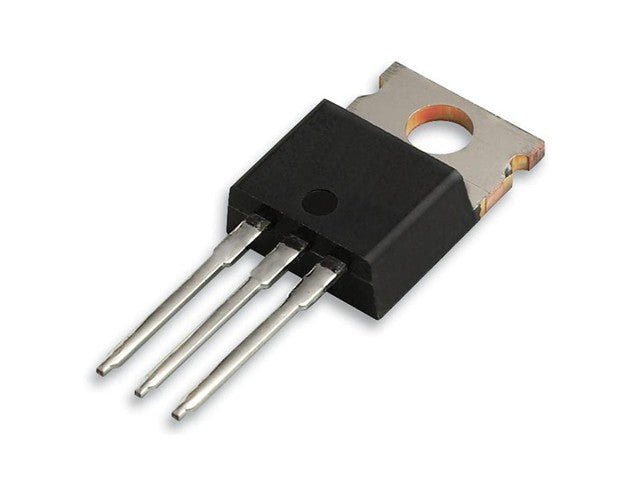

N 60V 4A 50W TO220 Transistor

Transistor Silicon NPN

Specifications

Case	TO220
Manufacturer	ST Microelectronics - STM
Vbr CBO	60
Vbr CEO	60
Max. PD (W)	50
Min hFE	25
Ic Max. (A)	8.0
@Ic (test) (A)	2.0
Polarity	NPN
Trans. Freq (Hz) Min.	3.0M
Oper. Temp (°C) Max.	140
@VCE (V)	2.0i
Pinout Equivalence Number	N/A
Surface Mounted Yes/No	NO
Maximum Collector Power Dissipation (Pc)	40 W
Maximum Collector-Base Voltage \|Vcb\|	60 V
Maximum Collector-Emitter Voltage \|Vce\|	60 V
Maximum Emitter-Base Voltage \|Veb\|	5 V
Maximum Collector Current \|Ic max\|	4 A
Max. Operating Junction Temperature (Tj)	150 °C
Transition Frequency (ft):	3 MHz
Forward Current Transfer Ratio (hFE), MIN	40

Additional Information

Device

Transistor

Upgrade your projects with the BD535 NPN Transistor, featuring robust 60V and 4A performance in a TO220 package. Ideal for high-power applications, it ensures reliable operation up to 140°C, making it perfect for electronics enthusiasts and professionals alike. Enhance your circuitry with this high-efficiency transistor today!
