BD680A

Name: BD680A - Communica [Part No: BD680A]
Brand: Communica
SKU: BD680A
Price: 3.84 ZAR
Availability: InStock

SKU: BD680A

BRAND: Communica

R 4.42_{(inc VAT)}
R 3.84_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Transistors

Category: PNP Darlington transistor

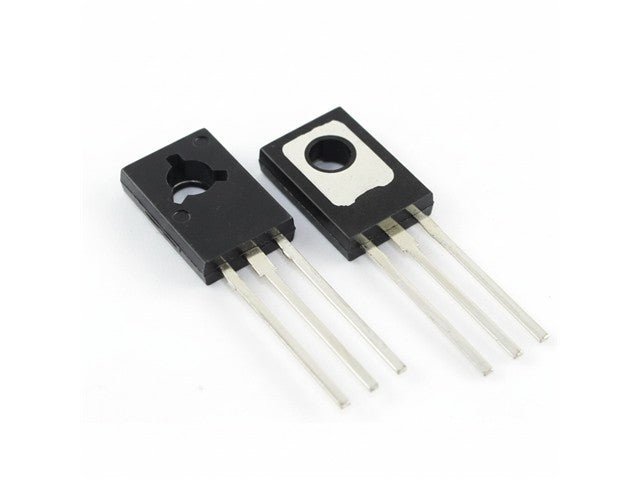

P-DARL+Di 80V 4A 40W TO126 Transistor

Transistor Silicon PNP

Specifications

Case	TO126
Vbr CEO	80
Max. PD (W)	40
t(on) Delay (S)	1.5u
t(f) Max. (S)	5.0u+
Min hFE	750
Ic Max. (A)	4.0
@Ic (test) (A)	1.5
Icbo Max. @Vcb Max. (A)	200u
Mat.	Silicon Logic
Polarity	PNP
Tr Max. (s)	15n
R(sat) (Û)	1.6
Derate Above 25°C	320m
Trans. Freq (Hz) Min.	1.0M
@VCE (test)	3.0
Oper. Temp (°C) Max.	150
Pinout Equivalence Number	3-35
Surface Mounted Yes/No	NO
Maximum Collector Power Dissipation (Pc)	40 W
Maximum Collector-Base Voltage \|Vcb\|	80 V
Maximum Collector-Emitter Voltage \|Vce\|	80 V
Maximum Emitter-Base Voltage \|Veb\|	5 V
Maximum Collector Current \|Ic max\|	4 A
Max. Operating Junction Temperature (Tj)	150 °C
Transition Frequency (ft):	1 MHz
Forward Current Transfer Ratio (hFE), MIN	750

Additional Information

Device

Transistor

Unlock powerful performance with the BD680A PNP Transistor, delivering up to 40W and handling currents of 4A with ease. Designed for efficiency and reliability, it features a maximum voltage of 80V and a high gain of 750, making it perfect for your electronic projects. Upgrade your circuit designs today with this robust and versatile transistor!
