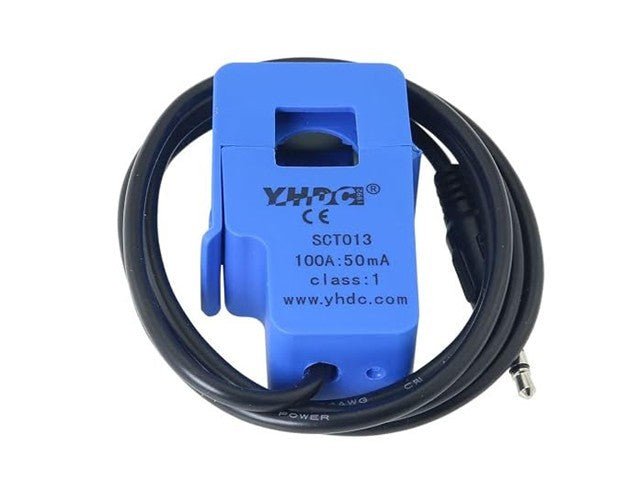

BDD AC CURRENT SENSOR CLAMP-100A

Name: BDD AC CURRENT SENSOR CLAMP-100A - Communica [Part No: BDD AC CURRENT SENSOR CLAMP-100A]
Brand: Communica
SKU: BDD AC CURRENT SENSOR CLAMP-100A
Price: 108.70 ZAR
Availability: OutOfStock

SKU: BDD AC CURRENT SENSOR CLAMP-100A

BRAND: Communica

Sold Out
R 125.01_{(inc VAT)}
R 108.70_{(ex VAT)}

Collections: IoT, Internet of things, New Arrivals

Type: Power, Battery & Solar

Category: Iot, New

100A Non-Invasive AC Current Sensor Clamp. Rated Input Current (RMS): 100A. Rated Output: 50mA

100A Non-Invasive AC Current Sensor Clamp

Overview

A non-invasive split-core current transformer designed to safely measure alternating current up to 100A without needing to cut or disconnect wires

Features

Suitable for Current Measuring
Monitoring and Protection of AC Motors
Lighting Equipment
Air Compressor

Specifications

Rated Input Current (RMS): 100A
Rated Output: 50mA
Turns Ratio: 1:2000
Accuracy: ±1 %
Linearity: ≤0.2 %
Sampling Resistance (Max): 10Ω
Working Voltage (Max): 660V
Frequency Range: 50Hz – 1kHz
Opening Size: 13mm x 13mm
Mounting Type: Free Hanging
Core Material: Ferrite
Cable Length: ~1 Meter
Connector Type: 3.5mm Audio Jack
Dielectric Strength 3.5kV 50Hz 1min
Fire Resistance Rating: UL94-V0
Certifications / Standards: GB1208-2006
Working Temperature Range: ~(-25℃ to +70℃)
Storage Temperature Range: ~(-30℃ to +90℃)

Additional Information

Device

Current Sensor Clamp

Experience seamless monitoring with the BDD AC Current Sensor Clamp, rated for 100A. This non-invasive clamp ensures safe, accurate measurements of AC currents for motors and lighting, enhancing your system's performance without any wire disconnection. With a compact design and high accuracy, it's the ideal solution for reliable current monitoring and protection.
