4 x H-Bridge Motor Drivers 0.6A (1.2A Peak). Can Drive: Motor Voltages from 4.5VDC TO 16VDC. (up to 36V IF C6 and C7 are upgraded).---up to 4 Bi-Directional DC Motors with Individual 8-Bit Speed Selection (256 Speeds).--Up To 2 Stepper Motors (UNI OR BIPO
4 x H-Bridge Motor Drivers
Overview
L293D use a 16-pin DIP package, its internal integration is a bipolar H – bridge circuit. This kind of bipolar pulse width method has many advantages, such as the current continuous, or microcurrent vibration when the motor stops, which has a lubrication effect. It can eliminate the dead zone of static friction when positive and negative.

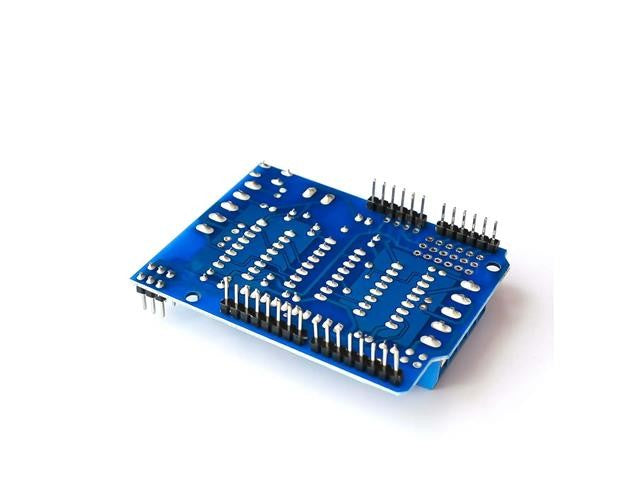

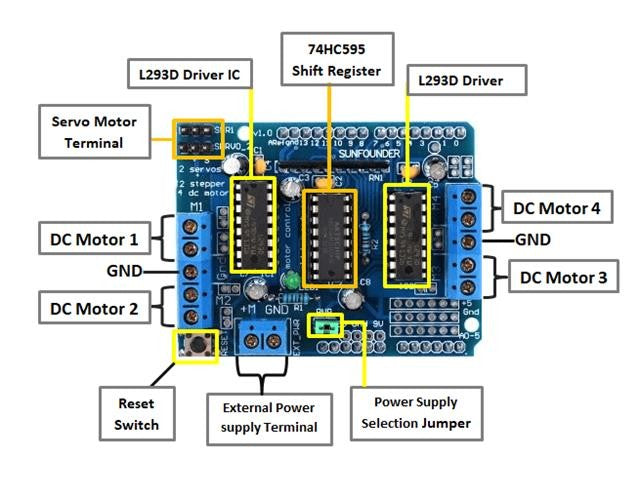

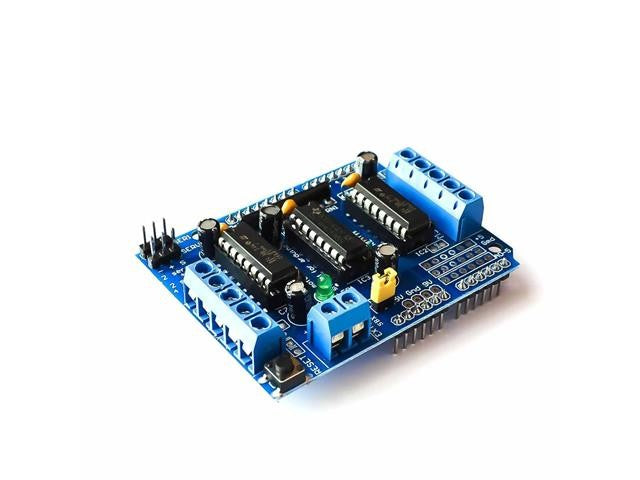

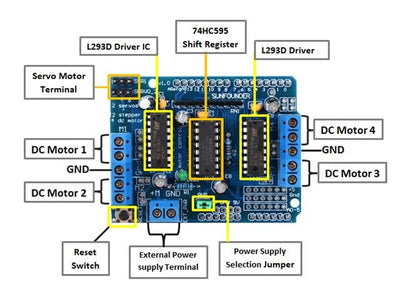

Features
2 interface for 5V Servo connected to For Arduino’s high-resolution dedicated timer – no jitter!
Can drive 4 DC motors or 2 stepper motors or 2 Servo
Up to 4 bi-directional DC motors with individual 8-bit speed selection
Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil, or interleaved stepping.
4 H-Bridges: per bridge provides 0.6A (1.2A peak current) with thermal protection, can run motors on 4.5V to 36V DC
Pull-down resistors keep motors disabled during power-up
reset button
2 external terminal power interfaces, for separate logic/motor supplies
Tested compatible with Arduino Mega, Diecimila & Duemilanove
Specifications
Power Supply : 5VDC~36VDC
4H-Bridges : Provides 0.6A(1.2A peak current )with thermal protection, per bridge
External Terminal power Interface : 2
Dimensions : 70x53x20mm
Additional Information
Device
Motor Drivers
Unlock the power of your projects with the BDD DC Motor Shield L293D! Capable of driving up to 4 bi-directional DC motors or 2 stepper motors, this versatile shield offers 256 speed settings for precise control. With thermal protection and compatibility with Arduino, it ensures reliable performance for your robotics and automation needs. Elevate your creations with this essential motor driver today!
