BDD DIGITAL TEMP CONTROL SWITCH - Sensors -

BDD DIGITAL TEMP CONTROL SWITCH

Name: BDD DIGITAL TEMP CONTROL SWITCH - Communica [Part No: BDD DIGITAL TEMP CONTROL SWITCH]
Brand: Communica
SKU: BDD DIGITAL TEMP CONTROL SWITCH
Price: 27.83 ZAR
Availability: InStock

SKU: BDD DIGITAL TEMP CONTROL SWITCH

BRAND: Communica

In Stock
R 32.00_{(inc VAT)}
R 27.83_{(ex VAT)}

Collections: IoT, Internet of things

Type: Sensors

Category: Iot, Temperature Sensors

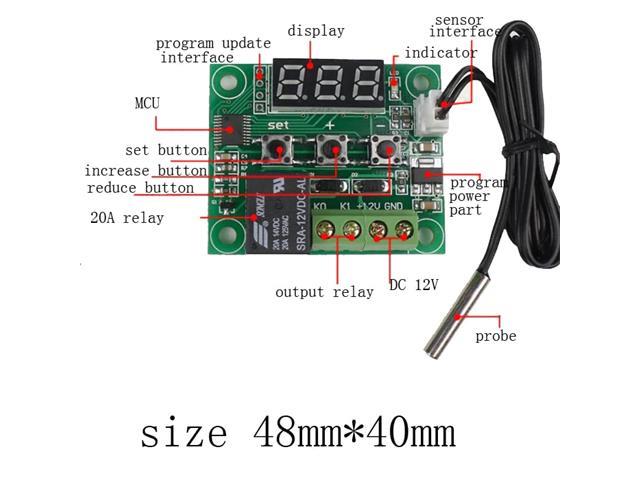

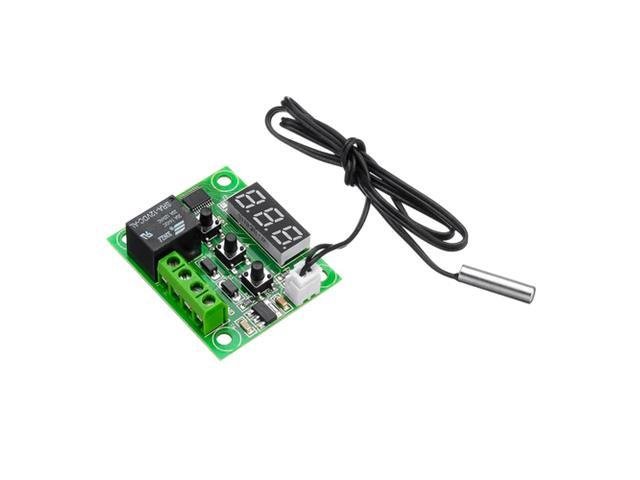

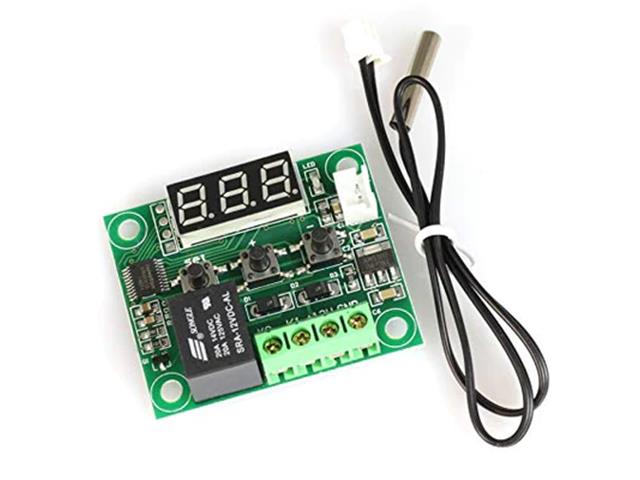

Digital Thermostat Temperature Module Xh-w1209 With Led Display And Relay Output. -50-110Deg C. Psu:12Vdc O/p: 10A Max. See Enclosure For This Item-- Hkd Digital Temp Control Enclosure

Digital Thermostat Temperature Module

Specifications

Supply voltage: DC 12V (MAX) if spikes higher than 12V add an extra Buck converter for smoothing.
Static current: ≤35MA, attract current ≤65MA
Output power: 10A relay
Measurement input: NTC (10K 0.5%) Waterproof Sensor
Environmental requirements: -10 ~ 60°C, Humidity 20% ~ 85%
Dimensions: 48 x 40mm
Cable length: About 52 cm
Temperature control mode: ON / OFF
Temperature range: -50 ~ +110°C
Control accuracy: 0.1°C
Hysteresis accuracy: 0.1°C
Refresh rate: 0.5S
High temperature protection: 0 ~ 110°C
Resolution: When the temperature is 0.1°C, the resolution is -9.9~99.9, other temperature segment is 1°C

Downloads

Datasheet - HKD DIGITAL TEMP CONTROL SWITCH

Additional Information

Device	Temperature Module
Type	Digital \| Thermostat
