BDD DSO2512G OSC DUAL CH 120MHZ - Oscilloscopes -

BDD DSO2512G OSC DUAL CH 120MHZ

Name: BDD DSO2512G OSC DUAL CH 120MHZ - Communica [Part No: BDD DSO2512G OSC DUAL CH 120MHZ]
Brand: Communica
SKU: BDD DSO2512G OSC DUAL CH 120MHZ
Price: 2739.13 ZAR
Availability: OutOfStock

SKU: BDD DSO2512G OSC DUAL CH 120MHZ

BRAND: Communica

Sold Out
R 3,150.00_{(inc VAT)}
R 2,739.13_{(ex VAT)}

Collections: Test & Measurement

Type: Oscilloscopes

Category: Hand-held Oscilloscopes

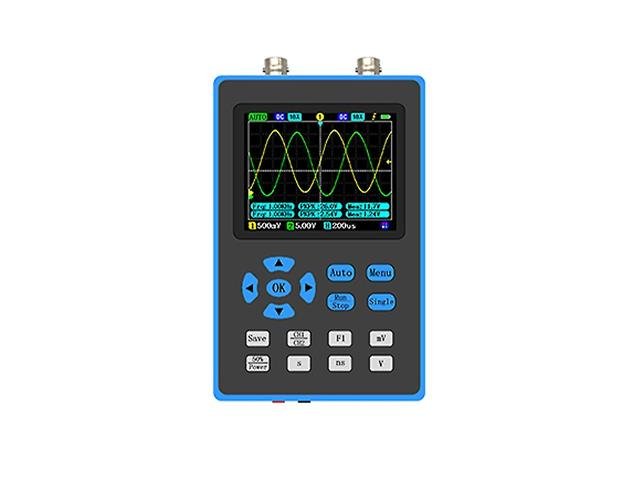

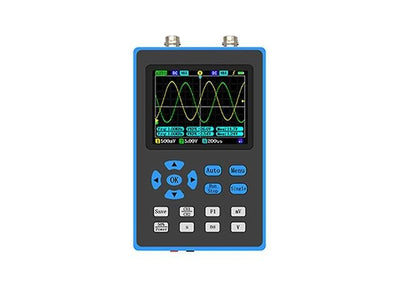

DSO2512G Oscilloscope Portable Handheld Dual Channel 2.8 Inch Display, 120MHz

Portable Handheld Dual Oscilloscope

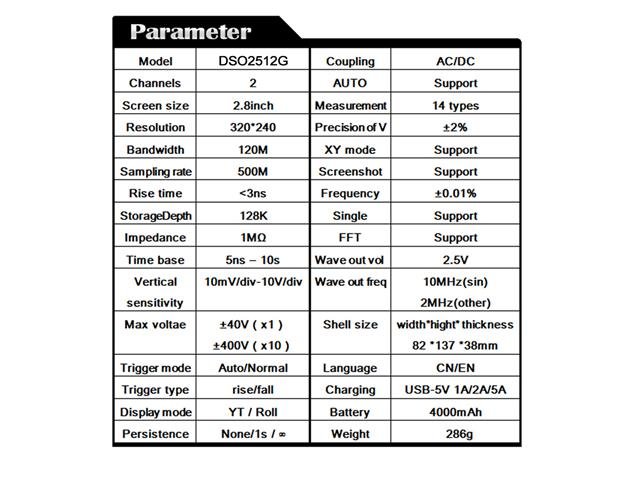

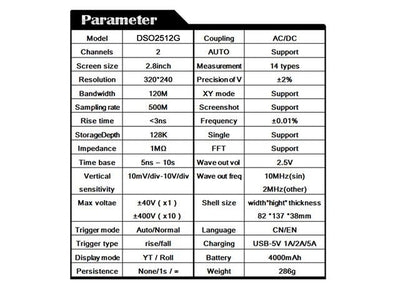

Specifications

Material: ABS
Channels: 2
Coupling: AC/DC
Precision of V: ±2%
Bandwidth 120M

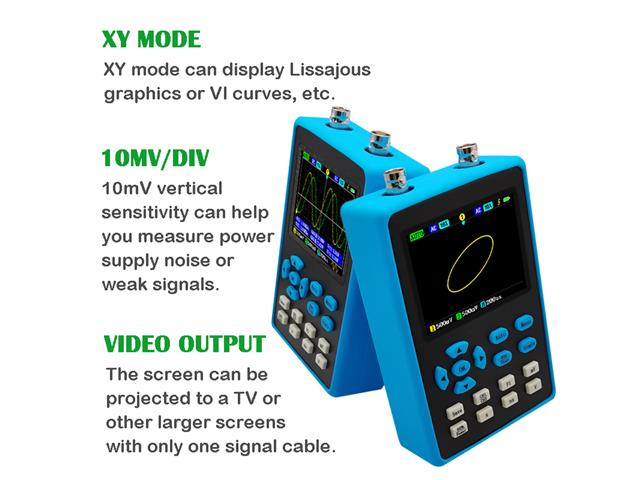

XY mode: support
Sampling rate: 500M
Screenshot: support
Rise time: <3ns
Frequency: ±0.01%
Storage depth: 128Kbit
Sin-gle: support
Impedance: 1MΩ
FFT: support
Time base: 5ns~10s
Wa-ve out amp: 2.5V
Ver sensitivity: 10mV/div~10V/div

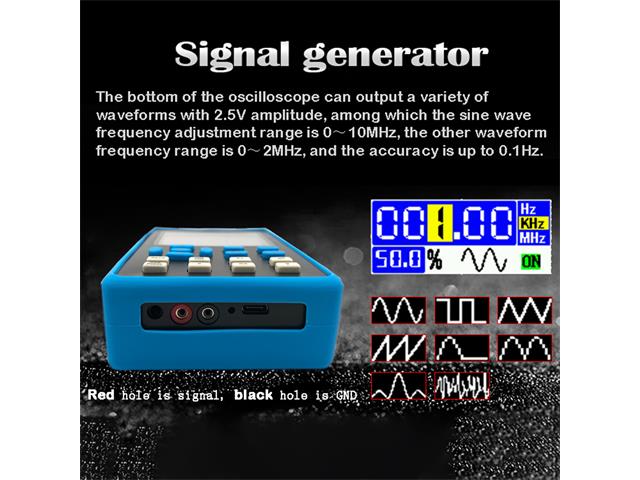

Waves out freq: 10MHz(sin) 2MHz(other)
Max voltage ±40V(x1), ±400V(x10）
Trigger type: rise/fall
Display mode: YT/Roll
Persistence: None/1s /∞
Battery: 1 * lithium battery, 4000mAh (included)
Package size: 210 * 140 * 115mm / 8.3 * 5.5 * 4.5in
Package weight: 689g / 1.5lb

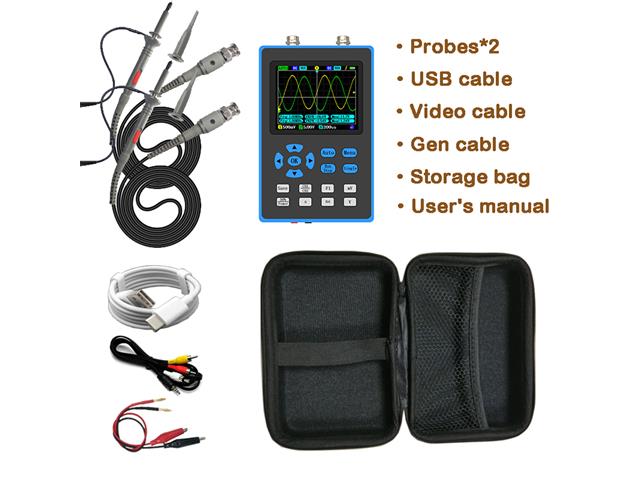

Packing list:

1 * Oscilloscope
2 * Probes
1 * Video Cable
1 * Gen Cable
1 * Storage Bag
1 * User Manual

Downloads

Datasheet - BDD DSO2512G OSC DUAL CH 120MHZ

Additional Information

Device	Oscilloscope
Type	Portable \| Handheld \| Dual

Discover precision with the BDD DSO2512G Oscilloscope, a portable dual-channel device featuring a 120MHz bandwidth and 2.8-inch display. Perfect for engineers and hobbyists, it offers a versatile sampling rate and user-friendly design, making complex diagnostics effortless. Capture and analyze signals with ease, ensuring your projects run smoothly.
