BDD ESP8266 RELAY 1CH 5/28V 30A

Name: BDD ESP8266 RELAY 1CH 5/28V 30A - Communica [Part No: BDD ESP8266 RELAY 1CH 5/28V 30A]
Brand: Communica
SKU: BDD ESP8266 RELAY 1CH 5/28V 30A
Price: 200 ZAR
Availability: OutOfStock

SKU: BDD ESP8266 RELAY 1CH 5/28V 30A

BRAND: Communica

Sold Out
R 230.00_{(inc VAT)}
R 200.00_{(ex VAT)}

Collections: IoT, Internet of things

Type: Power, Battery & Solar

Category: 1 Channel Relay Boards, Iot

One Channel ESP8266 30A Relay WiFi Module Board. Based on the ESP-12F WiFi Module. Has A 30A Relay. Power Supply DC 7 - 28V OR 5V

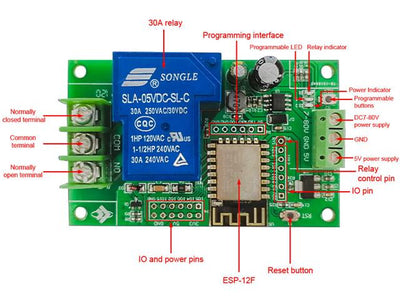

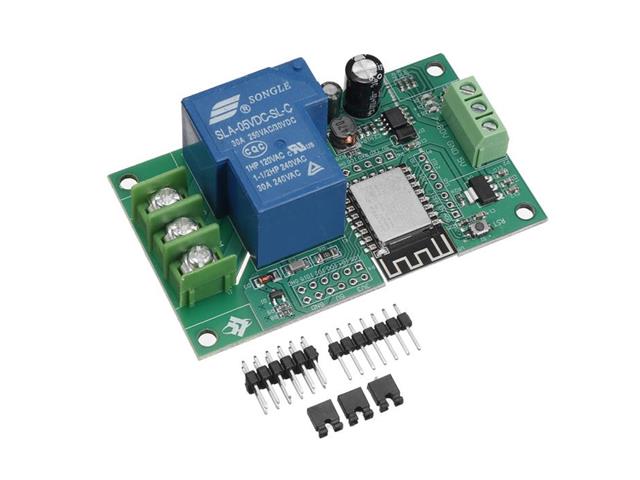

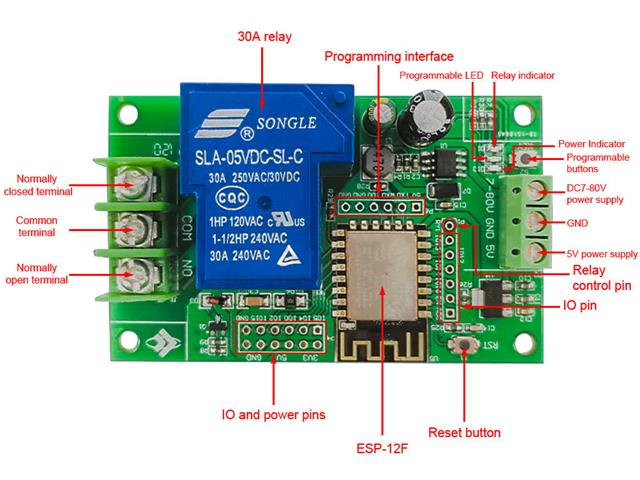

ESP8266 30A Relay WiFi Module Board.

Features

A single channel relay WiFi module based on the ESP-12F WiFi module and a 30A relay

Mature and stable ESP-12F WiFi module on board, 4MB flash.
The I/O port of the WiFi module and the UART program transfer port are all driven out. It is convenient for secondary development.
Power supply DC7-28V / 5V.
Onboard is a WiFi module RST reset button and a programmable button.
ESP-12F supports the use of Eclipse/IDE and other development tools and provides reference programs in development environment
On board is a single channel 5V/30A relay which is suitable for controlling the loads within AC 250V/DC30V voltage range.
Onboard a power indicator, a relay indicator. The ESP-12F comes with a programmable LED.
Board size: 78*47mm

Additional Information

Device	WiFi Module Board
Type	ESP8266 \| 30A \| Relay \| 1CH
