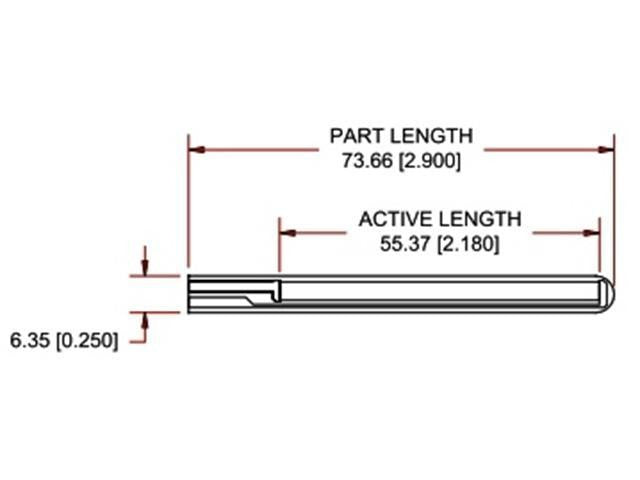

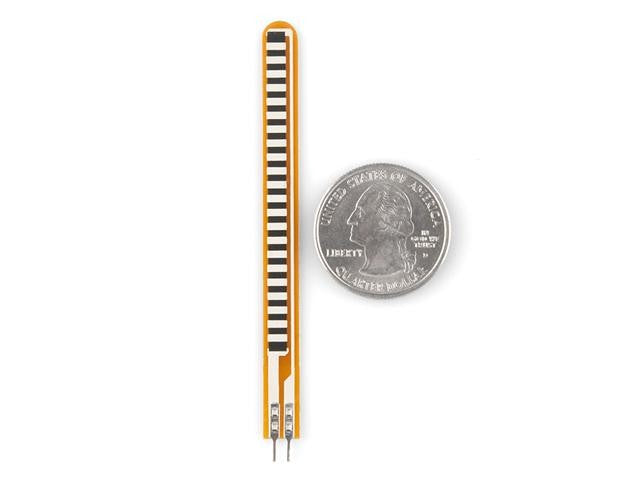

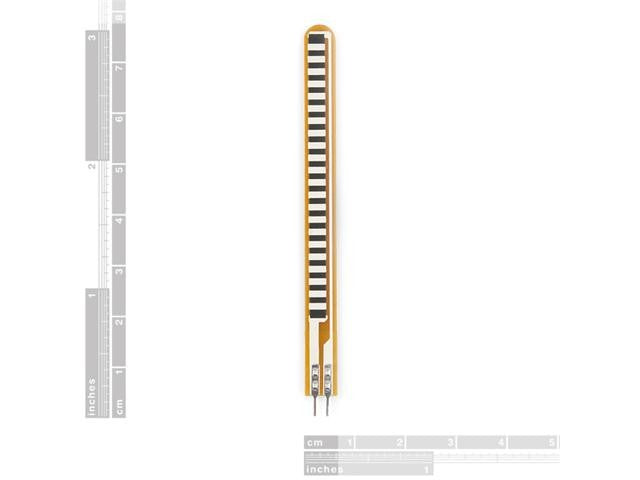

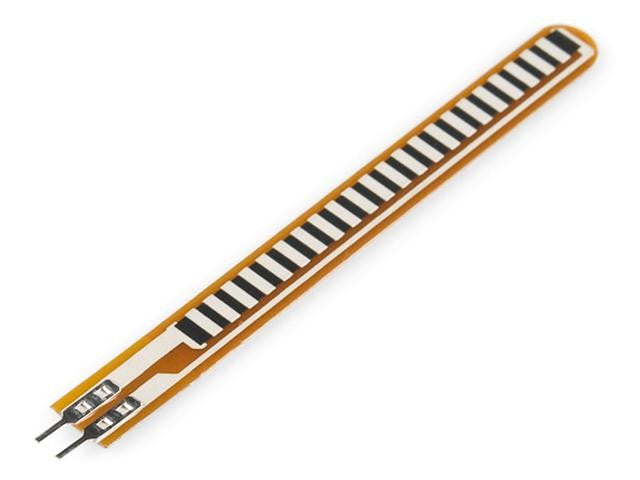

A simple flex sensor 2.2 inch in length. As the sensor is flexed, the resistance across the sensor increases. Patented technology by Spectra Symbol - they claim these sensors were used in the original Nintendo Power Glove.

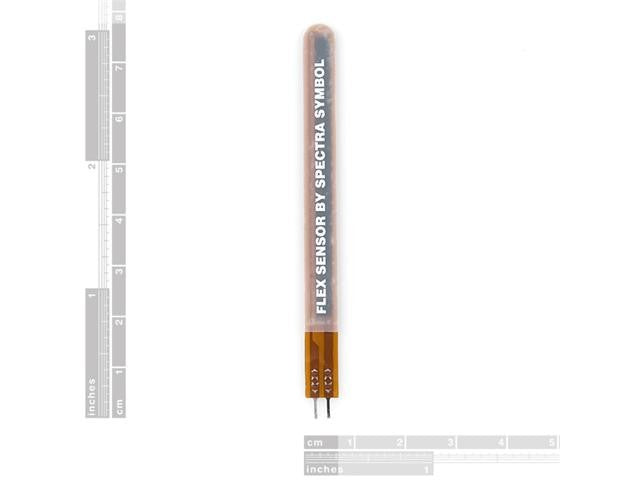

The resistance of the flex sensor changes when the metal pads are on the outside of the bend (text on inside of bend).

Connector is 0.1 inch spaced and bread board friendly. Check datasheet for full specifications.

Note : Please refrain from flexing or straining this sensor at the base. The usable range of the sensor can be flexed without a problem, but care should be taken to minimize flexing outside of the usable range. For best results, securely mount the base and bottom portion and only allow the actual flex sensor to flex.

• Angle Displacement Measurement
• Bends and Flexes physically with motion device
• Simple Construction
• Low Profile
• Possible Uses
  • Robotics
  • Gaming (Virtual Motion)
  • Medical Devices
  • Computer Peripherals
  • Musical Instruments
  • Physical Therapy

• Flat Resistance : 10K Ohms ±30%
• Bend Resistance : minimum 2 times greater than the flat resistance at 180° pinch bend
• Power Rating : 0.5 Watts continuous, 1 Watt Peak
• Life Cycle : >1 million
• Height : 0.43mm
• Temperature Range : -35°C to +80°C
