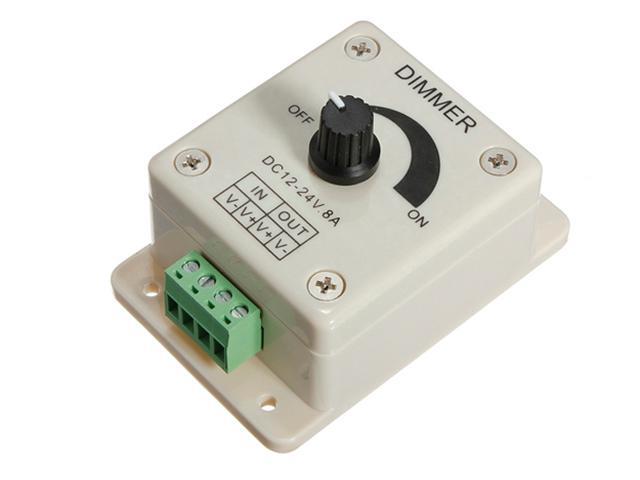

BDD LED DIMMER 12-24V 8A 96-192W

SKU: BDD LED DIMMER 12-24V 8A 96-192W

BRAND: Communica

Single Channel Adjustable Dimmer Control. 12-24VDC 8A 96-192W

Single Channel Adjustable Dimmer Control


How to Use :

  • Connect the Load at first, following by the power. Please ensure that there are no short circuits in the wiring before you turn on the power.
  • Rotary Button Functions :
    • Rotate button to the right, brightness will be brighter, when you rotate it to the far right, the brightness is greatest.
    • Rotate button to the left, brightness will be less, when you rotate it to the far left, the light will be turned off.


  • Working Temperature : -20~+60°C
  • Supply Voltage : DC 12~24V
  • Output : 1 channel
  • External dimension : 89(L) x 59(W) x 35(H) mm
  • Packing size : 95(L) x 65(W) x 64(H) mm
  • Weight : 75g
  • Static Power Consumption : <1W
  • Output Current : 8A
  • Power Output : 96~192W

Additional Information

Device Dimmer Control
Type Single Channel | Adjustable
