BDD NRF24L01+ TRANSCEIVER MODULE - Communications - 67593447440684

BDD NRF24L01+ TRANSCEIVER MODULE

Name: BDD NRF24L01+ TRANSCEIVER MODULE - Communica [Part No: BDD NRF24L01+ TRANSCEIVER MODULE]
Brand: Communica
SKU: BDD NRF24L01+ TRANSCEIVER MODULE
Price: 22.61 ZAR
Availability: OutOfStock

SKU: BDD NRF24L01+ TRANSCEIVER MODULE

BRAND: Communica

Sold Out
R 26.00_{(inc VAT)}
R 22.61_{(ex VAT)}

Collections: IoT, Internet of things, New Arrivals

Type: Communications

Category: Iot, New

2,4GHz Transceiver Module Using NORDIC NRF24L01+. SPI I/FACE. Voltage: 1.9-3.6V (Recommended 3.3V), 250m Open Area, Maximum Output Power: +20DBM, Emission Mode Current(Peak): 115mA, Receive Mode Current(peak): 45mA, Power-Down Mode Current: 4.2UA

2,4GHz Transceiver Module

Overview

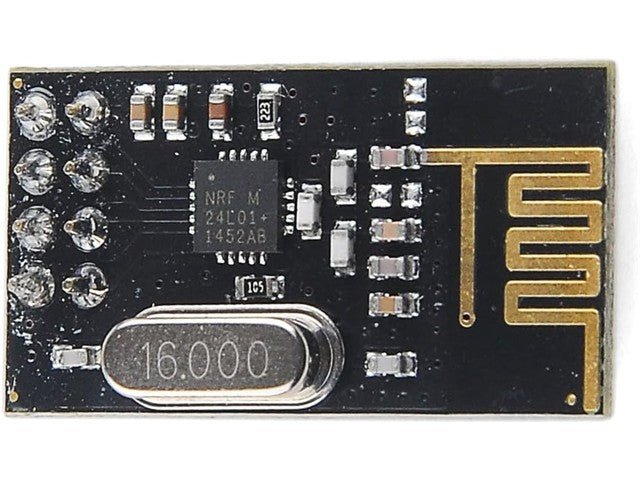

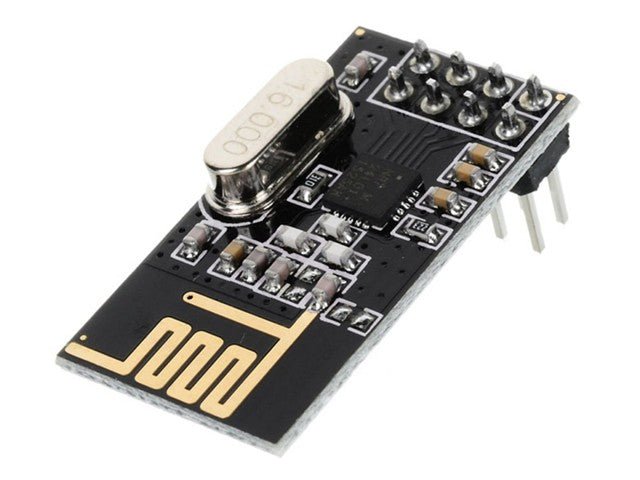

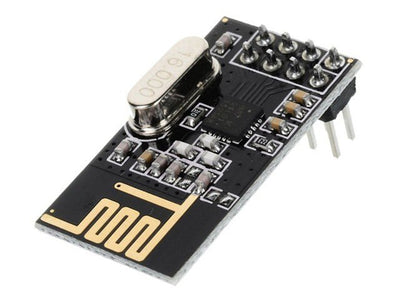

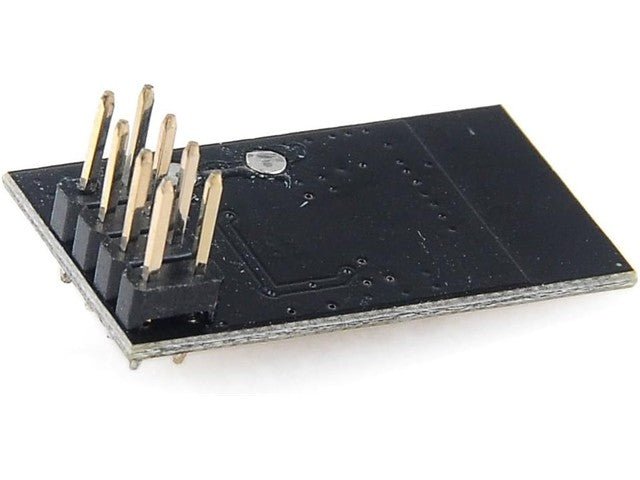

The mini NRF24 (TW) wireless board, 12x18mm, orignal nordic NRF24L01 compatible, all the same way of use, the only two differences with original one are: NRF24 can provide higher transmission power up to 7dbm (0dbm original) but same power computation on same transmission power level, also this one is less expensive.

Specifications

Voltage : 1.9-3.6V
Sensitivity : 2Mbps – -83dB, 1Mbps – 87dB, 250kbps – -96dB
Receiving Current : 2Mbps – 15mA, 1Mbps – 14.5mA, 250kbps – 14mA
Standby Current : 15uA
Power off Current : 700nA
Operation Temperature : -20 ~ +55 degree
On board PCB antenna, transmission distance reach 240M in open area, but 2.4G frequency is not good to pass through walls, also interfere by 2.4G wifi signal significantly

Additional Information

Device

Transceiver Module

Enhance your wireless projects with the BDD NRF24L01+ Transceiver Module. Operating at 2.4GHz, it offers a reliable range of 250 meters and low power consumption, making it perfect for IoT applications. Enjoy seamless connectivity and superior performance with this budget-friendly, high-output transceiver.
