BDD UNO REV3 - Development / Microcontroller Boards - 67593447670060

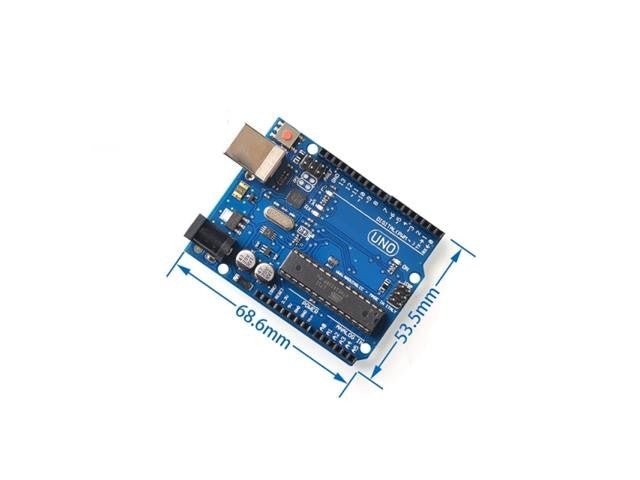

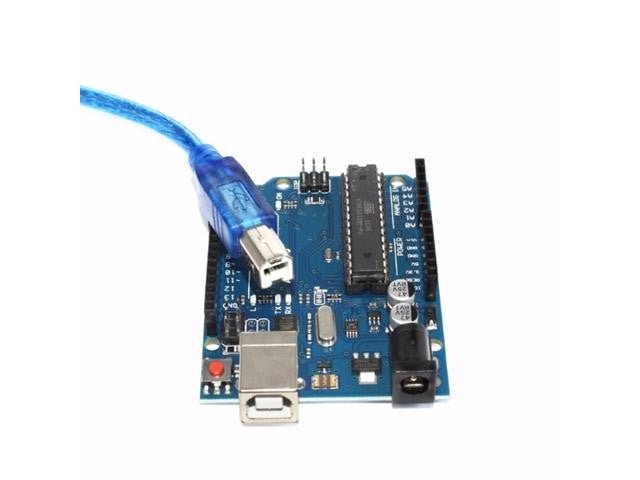

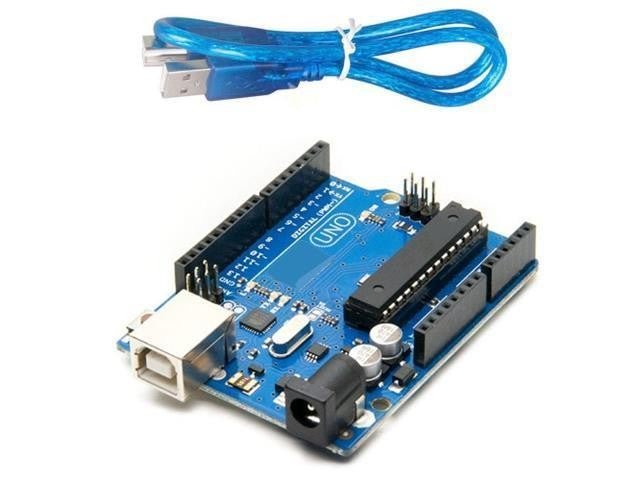

BDD UNO REV3

Name: BDD UNO REV3 - Communica [Part No: BDD UNO REV3]
Brand: Communica
SKU: BDD UNO REV3
Price: 120.87 ZAR
Availability: OutOfStock

SKU: BDD UNO REV3

BRAND: Communica

Sold Out
R 139.00_{(inc VAT)}
R 120.87_{(ex VAT)}

Collections: IoT, Internet of things, New Arrivals

Type: Development / Microcontroller Boards

Category: Iot, New

Compatible With Arduino ATMEGA328 UNO REV3. Uses ATMEGA16U2 USB Driver Not CH340 Which Is Low Cost

Compatible With Arduino ATMEGA328 UNO REV3

Overview

This is the new Compatible with Arduino ATMEGA328 UNO REV3. Uses ATMEGA16U2 USB Driver not CH340 which is low cost Arduino Uno R3. In addition to all the features of the previous board, the Uno now uses an ATmega16U2 instead of the 8U2 found on the Uno (or the FTDI found on previous generations). This allows for faster transfer rates and more memory. No drivers needed for Linux or Mac, inf file for Windows is needed and included in the Arduino IDE.

Specifications

Microcontroller : ATmega328P
Operating Voltage : 5V
Input Voltage (recommended) :7-12V
Input Voltage (limits) : 6-20V
Digital I/O Pins : 14 (of which 6 provide PWM output)
Analog Input Pins : 6
DC Current per I/O Pin : 40 mA
DC Current for 3.3V Pin : 50 mA
Flash Memory : 32 KB (ATmega328) of which 0.5 KB used by bootloader
SRAM : 2 KB (ATmega328)
EEPROM : 1 KB (ATmega328)
Clock Speed : 16 MHz

Additional Information

Device

UNO REV3

Elevate your projects with the BDD UNO REV3, a powerful Arduino-compatible board featuring the ATmega328P microcontroller. Enjoy faster data transfer and enhanced performance with the ATmega16U2 USB driver. Perfect for makers and developers, this versatile board supports a wide range of applications with 14 digital I/O pins and robust memory options. Unlock your creativity and bring your ideas to life effortlessly!
