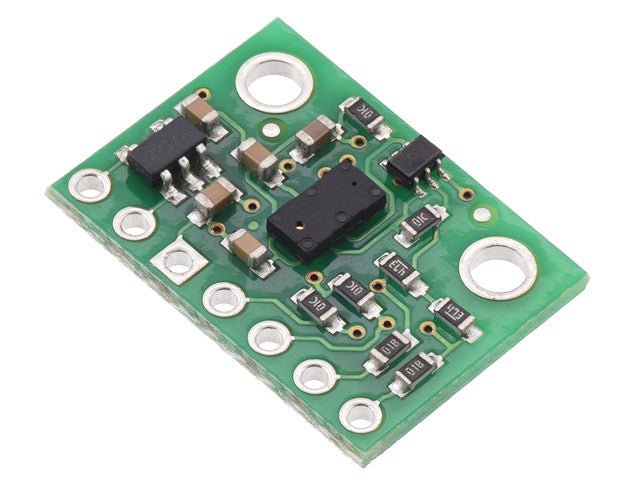

VL53L4CD Laser TOF Sensor 1.3M
1.3M VL53L4CD Laser TOF Sensor
Specifications
- High precision proximity distance measurement
- From 0 to 1300 millimeters, with full field of view (FoV)
- Short distance linearity can reach 1 millimeter
- The field of view is 18 degrees
- Autonomous low-power mode with programmable interrupt width, used to wake up the host
- Fast ranging frequency up to 100 Hz
- Fully integrated Micro-module
- 940nm invisible emitter (VCSEL) and analog driver
- Low power microcontroller running advanced digital firmware
- The size is 4.4x2.4x1 millimeters
- Fully compatible pin to pin with VL53L0X, VL.53L1X, VL53L1CB, VL53L3CX, and VL53L4CX
- Easy to integrate
- Remeltable component
- Single power supply 2V8
- Can be hidden behind the cover glass
- I2C interface (up to 1MHz)
- Complete set of C software drivers (compatible with Linux) compatible with plug and play distance measurement
- Embedded processing with very low memory usage in the host
- Color: As Shown
- Material: plastic
- Package Contents:
- 2 x VL53L4 sensor module
- Only the above package content, other products are not included.
- Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The
- measurement allowed error is +/- 1-3cm.
Additional Information
Discover precision with the BDD VL53L4CD Laser TOF Sensor, offering accurate distance measurement up to 1.3 meters. Its compact design and low power consumption make it perfect for seamless integration into your projects. Enjoy fast, reliable ranging at 100 Hz, ensuring optimal performance in any application. Upgrade your technology with this advanced proximity sensor for unmatched reliability and efficiency.
