BF258

Name: BF258 - Communica [Part No: BF258]
Brand: Communica
SKU: BF258
Price: 2.85 ZAR
Availability: InStock

SKU: BF258

BRAND: Communica

R 3.28_{(inc VAT)}
R 2.85_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Transistors

Category: NPN Bipolar Transistor

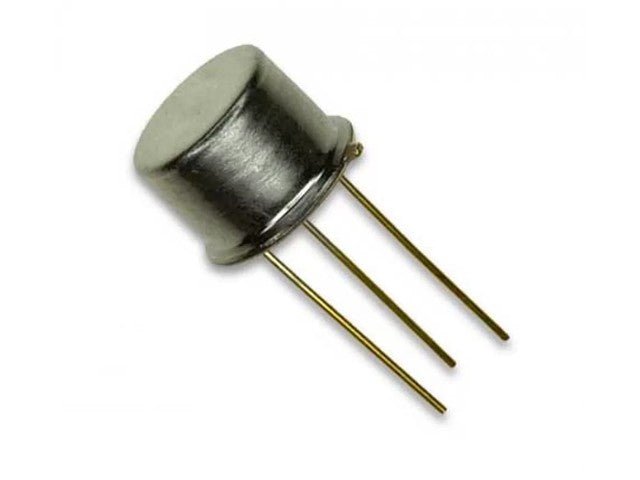

N 250V 250V 100MA 25MN TO39 Transistor

Transistor Silicon NPN

Specifications

Case	TO39
Vbr CBO	250
Vbr CEO	250
Max. PD (W)	5.0
Min hFE	25
Ic Max. (A)	100m
@Ic (test) (A)	30m
Icbo Max. @Vcb Max. (A)	50n
Polarity	NPN
R(sat) (Û)	33m
Derate Above 25°C	28m
Trans. Freq (Hz) Min.	90M
Oper. Temp (°C) Max.	175
@VCE (V)	10
Pinout Equivalence Number	3-12
Surface Mounted Yes/No	NO
Maximum Collector Power Dissipation (Pc)	0.8 W
Maximum Collector-Base Voltage \|Vcb\|	250 V
Maximum Collector-Emitter Voltage \|Vce\|	250 V
Maximum Emitter-Base Voltage \|Veb\|	5 V
Maximum Collector Current \|Ic max\|	0.1 A
Max. Operating Junction Temperature (Tj)	125 °C
Collector Capacitance (Cc)	7 pF
Transition Frequency (ft):	55 MHz
Forward Current Transfer Ratio (hFE), MIN	25

Additional Information

Device

Transistor

Upgrade your electronics with the BF258 Transistor, a high-performance NPN silicon component offering 250V max voltage and 100mA collector current. Designed for reliability and efficiency, its compact TO39 package ensures seamless integration into your projects. Experience superior performance with a transition frequency of 55 MHz and minimal power dissipation, making it the ideal choice for your circuit needs.
