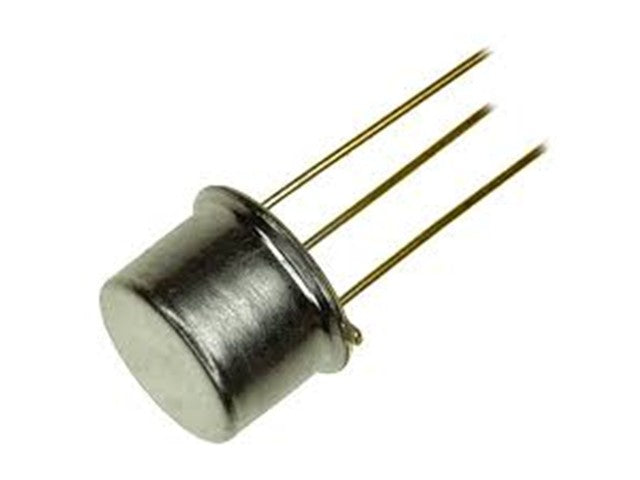

BFW17A

Name: BFW17A - Communica [Part No: BFW17A]
Brand: Communica
SKU: BFW17A
Price: 5.56 ZAR
Availability: InStock

SKU: BFW17A

BRAND: Communica

R 6.39_{(inc VAT)}
R 5.56_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Transistors

Category: NPN RF Transistor

SI-N 25V 0.3A 1.5W 1.1GHz

Specifications

Case	TO39
Vbr CBO	25
Mat.	Silicon Logic
Oper. Gain Typ (S21)	16
Oper. Pwr Out Typ.	150m
f(osc) Max. (Hz)	1.1G
Polarity	NPN
PD Max. (W)	1.5
Coll. (or drain) Current Max.	150m
Oper. Temp (°C) Max.	175
Pinout Equivalence Number	3-12
Surface Mounted Yes/No	NO
Maximum Collector Power Dissipation (Pc)	1.5 W
Maximum Collector-Base Voltage \|Vcb\|	40 V
Maximum Collector-Emitter Voltage \|Vce\|	25 V
Maximum Emitter-Base Voltage \|Veb\|	2 V
Maximum Collector Current \|Ic max\|	0.3 A
Max. Operating Junction Temperature (Tj)	200 °C
Transition Frequency (ft):	550 MHz
Forward Current Transfer Ratio (hFE), MIN	25

Additional Information

Device

Transistor

Discover the BFW17A NPN transistor, designed for high-performance applications with a 1.1GHz frequency and maximum power dissipation of 1.5W. Ideal for efficient circuit designs, it offers reliability with a robust operating temperature range. Upgrade your electronic projects with this powerful, durable component for optimal results.
