BMT CP2515 CAN BUS MODULE

SKU: BMT CP2515 CAN BUS MODULE

BRAND: Communica

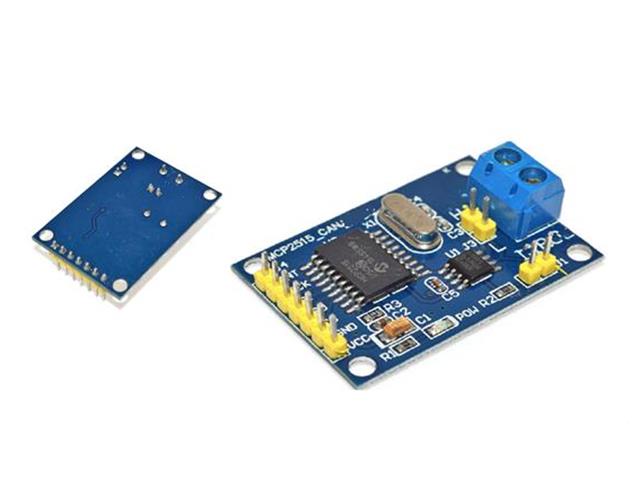

Can Bus Module V2.0B. MCP2515 Can Bus with TJA1050 Receiver. SPI Interface. 5VDC.

Overview

Features

  • Support Can V2.0B Specification, The Communication Speed 1Mb / S 0 to 8-Byte Data Field
  • Three Frames : Standard, Expand The Frame And Remote
  • DC5V Power Supply Module & Spi Interface Protocol Control
  • 120 Ohm Termination Resistors, Impedance Matching, Ensure Drive Capacity, Long-distance Data Transmission Against Signal Radiation
  • Module Dimensions : 4 x 2.8 cm / 1.57 x 1.1" (Approx.)
  • Working Current : Typ. 5mA & 1Μa Standby Current
  • Working Temperature : (Industrial Grade) -40 ℃- +85℃
  • Mcp2515 Can Bus Module Tja1050 Receiver With Spi Protocol For Arduino 51 Te534

Specification
