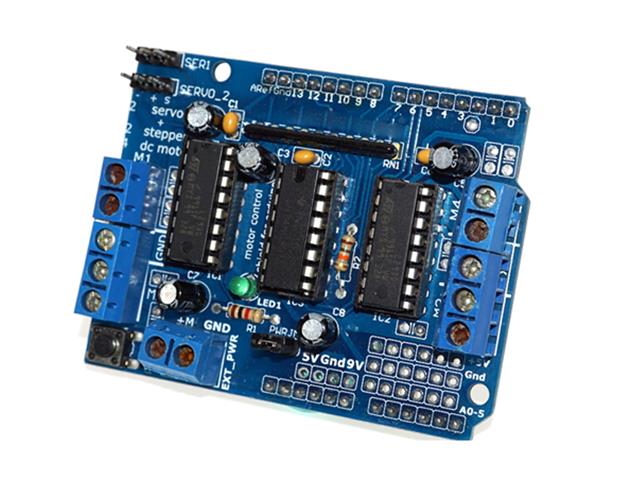

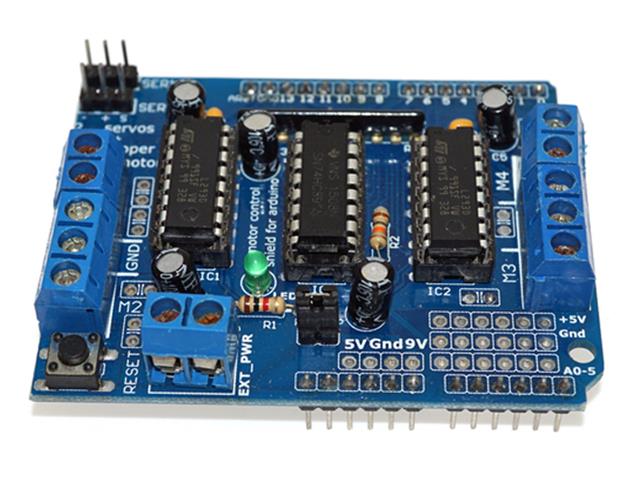

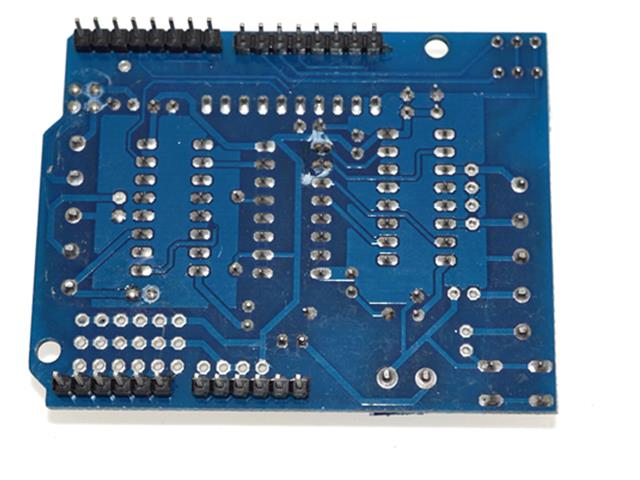

BMT DC MOTOR SHIELD L293D 1.2A

SKU: BMT DC MOTOR SHIELD L293D 1.2A

BRAND: Communica


4x H-Bridge Motor Driver 0.6A (1.2A PEAK). Can Drive: Motor Voltages from 4.5VDC to 16VDC. (Up to 36V IF C6 and C7 ARE Upgraded). Up to 4 Bi-directional DC Motors with Individual 8-bit Speed Selection (256 Speeds). Up to 2 Stepper Motors (UNI OR BIPO)

4x H-Bridge Motor Drivers 0.6A

Overview

L293D is a monolithic integrated, high voltage, high current, 4-channel driver. Basically this means using this chip you can use DC motors and power supplies of up to 25 Volts, that"s some pretty big motors and the chip can supply a maximum current of 600mA per channel, the L293D chip is also what"s known as a type of H-Bridge. The H-Bridge is typically an electrical circuit that enables a voltage to be applied across a load in either direction to an output, e.g. motor.

Features

  • 2 interface for 5V Servo connected to the Arduino"s high-resolution dedicated timer - no jitter.
  • Can drive 4 DC motors or 2 stepper motors or 2 Servo.
  • Up to 4 bi-directional DC motors with individual 8-bit speed selection.
  • Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil or interleaved stepping.
  • 4 H-Bridges: per bridge provides 0.6A (1.2A peak current) with thermal protection, can run motors on 4.5V to 25V DC.
  • Pull down resistors keep motors disabled during power-up.
  • 2 external terminal power interface, for separate logic/motor supplies.
  • Tested compatible for Arduino Mega, Diecimila and Duemilanove.

Specifications

  • Power Supply : 5VDC~36VDC
  • 4H-Bridges : Provides 0.6A(1.2A peak current )with thermal protection, per bridge
  • External Terminal power Interface : 2
  • Dimensions : 70x53x20mm

Additional Information

Device Motor Drivers
Type 4x H-Bridge | 0.6A
