BMT ESP-32 WIFI B/T DEV BOARD

Name: BMT ESP-32 WIFI B/T DEV BOARD - Communica [Part No: BMT ESP-32 WIFI B/T DEV BOARD]
Brand: Communica
SKU: BMT ESP-32 WIFI B/T DEV BOARD
Price: 100 ZAR
Availability: InStock

SKU: BMT ESP-32 WIFI B/T DEV BOARD

BRAND: Communica

In Stock
R 115.00_{(inc VAT)}
R 100.00_{(ex VAT)}

Collections: IoT, Internet of things

Type: ESP8266 & ESP32 Modules

Category: ESP32 Modules and Boards, Iot

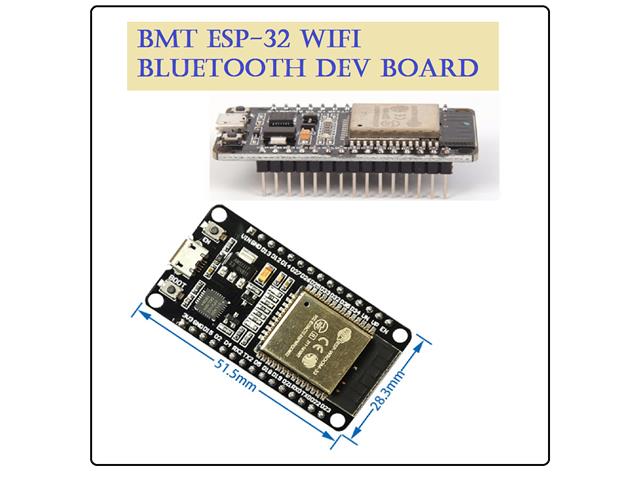

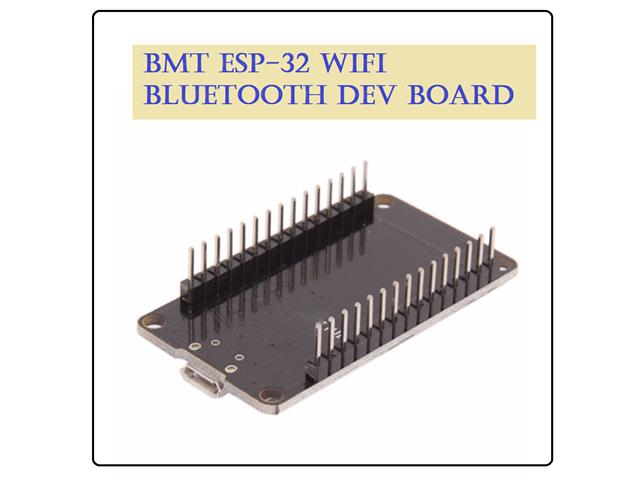

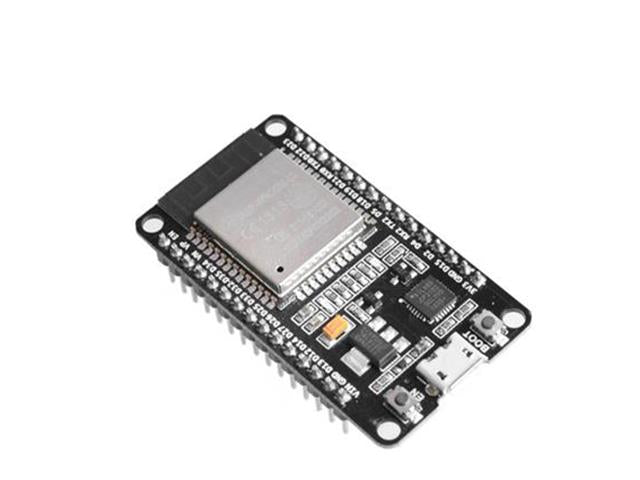

ESP-32 Wireless WiFi Bluetooth Development Board 2.4GHZ CP2102 Micro USB Dual Core Module

WiFi Bluetooth Development Board

Features

ESP32 Development board, wireless WiFi+ bluetooth 2 in 1 dual core CPU low power
ESP32 Integrates antenna switch, RF balun, power amplifier, low noise amplifier, filter and power management module. the whole solution occupies the least printed circuit board area. 2.4 GHZ Wi-Fi plus bluetooth dual mode chip
Adopting tsmc low power 40nm technology, the power consumption and RF performance are the best, safe and reliable, and easy to extend to various applications.
Module do output can be MCU I / O port is directly connected through the microcontroller can detect dry reed pipe trigger state;
Output and relay module do in terminal connected to form a high-power reed switches, high voltage direct control.

Specifications

ESP32-WROOM-32 contains two low-power Xtensa 32-bit LX6 microprocessors
448 KBytes ROM for booting and core functions
520 KBytes on-chip SRAM
8 KBytes SRAM in RTC SLOW
8 KBytes SRAM in RTC FAST
1 Kbit of EFUSE, 256 bits MAC
WiFi: 802.11 b/g/n/d/e/i/k/r (802.11n up to 150 Mbps)
Bluetooth v4.2 BR/EDR and BLE specification
Wi-Fi mode Station/softAP/SoftAP+station/P2P
Security WPA/WPA2/WPA2-Enterprise/WPS
Encryption AES/RSA/ECC/SHA
IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT
Interfaces: SD-card, UART,SPI,SDIO,I2C,LED PWM,Motor PWM,I2S ,IR,GPIO, capacitive touch sensor, ADC, DAC, Hall sensor, temperature sensor
Operating temperature -40 + 85C
Operating voltate: 2.2-3.6V
Consumption: 80 mA typ
Dimensions: 18 mm(L) x 25.5 mm(W) x 2.8 mm(H)
Pin pitch:1.27mm
Shielding can height: 2 mm
PCB tickness: 0.8±0.1mm

Additional Information

Device	Development Board
Type	WiFi \| Bluetooth
References	Please refer to the following links on the internet to assist with the ESP32 development board : 1. Installing the ESP32 Board in Arduino IDE (Windows, Mac OS X, Linux) 2. DroneBot Workshop 3. Installing the ESP32 Board in Arduino IDE (Windows, Mac OS X, Linux) 4. How to install ESP32 Board in Arduino IDE 5. DeepBlue 6. ESP32
