BMT ESP32 LVGL+WIFI+BT+2.8IN LCD - Development / Microcontroller Boards -

BMT ESP32 LVGL+WIFI+BT+2.8IN LCD

Name: BMT ESP32 LVGL+WIFI+BT+2.8IN LCD - Communica [Part No: BMT ESP32 LVGL+WIFI+BT+2.8IN LCD]
Brand: Communica
SKU: BMT ESP32 LVGL+WIFI+BT+2.8IN LCD
Price: 347.83 ZAR
Availability: InStock

SKU: BMT ESP32 LVGL+WIFI+BT+2.8IN LCD

BRAND: Communica

R 400.00_{(inc VAT)}
R 347.83_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: IoT, Internet of things, New Arrivals

Type: Development / Microcontroller Boards

Category: Iot, LVGL WiFi & Bluetooth Development Board, New

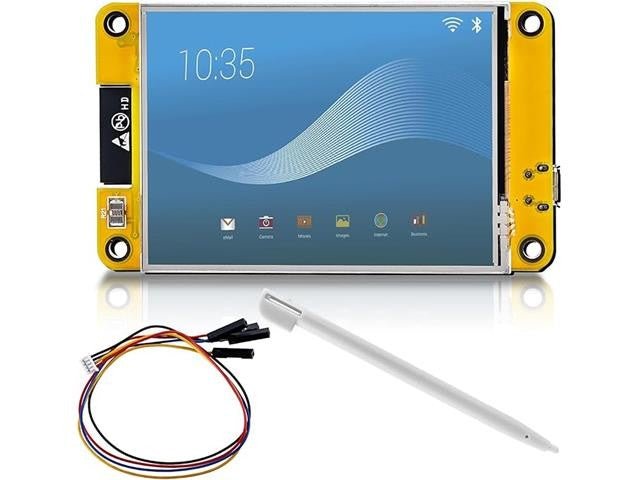

ESP32 Arduino LVGL WiFi & Bluetooth Development Board. 2.8Inch 240*320 Smart Display Screen. Resistive Touch

LVGL WiFi & Bluetooth Development Board

Overview

LVGL (Light and Versatile Graphics Library) is a free, open-source software library for creating professional-looking graphical user interfaces (GUIs) on embedded systems with limited resources. Written in C, it is hardware-independent and supports a variety of microcontrollers, displays, and input devices. LVGL features a rich set of widgets, advanced graphics effects like animations and anti-aliasing, and a low memory footprint, making it ideal for creating visually appealing and interactive user interfaces for devices.

Features

Uses a low-power dual-core 32-bit CPU which can be programmed through the Arduino IDE
The microcontroller operating frequency is up to 240MHz, and the computing power is up to 600 DMIPS
High-quality Colour TFT with 240 x 320 resolution. Also includes a resistive touch screen. Great package for building high-quality GUI interfaces
Arduino LVGL can be used to generate high-quality GUI Graphics
Built-in 520 KB SRAM
Supports UART//I2C/PWM/and other interfaces
Working voltage 4.75-5.25V
SPI Flash default 32Mbit
RAM internal 520KB
Wi-Fi 802.11b/g/n/e/i
Bluetooth 4.2BR/EDR and BLE standard
Support interface (2Mbps) UART, I2C, PWM
Support TF card, maximum support of 16GB
IO Expansion Port to utilize GPIO pins
Onboard WiFi & BLE Antenna
Power consumption when the flash is off 180mA@5V when the flash is on and TFT brightness is maximum: 310mA@5V. Deep sleep: The lowest power consumption can reach upto 6mA@5V
Working temperature -20 ℃~ 70 ℃
Storage environment -40 ℃~ 125 ℃, 90%RH

Additional Information

Device

Development Board

Unlock your creativity with the BMT ESP32 LVGL Development Board featuring WiFi, Bluetooth, and a vibrant 2.8-inch LCD. Perfect for crafting interactive GUIs, this powerful tool supports Arduino IDE and offers low-power performance, making it ideal for innovative projects. Elevate your embedded systems with high-quality graphics and versatile connectivity options.
