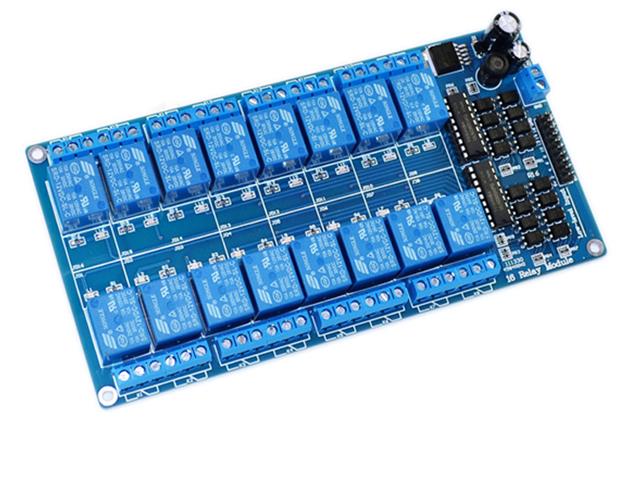

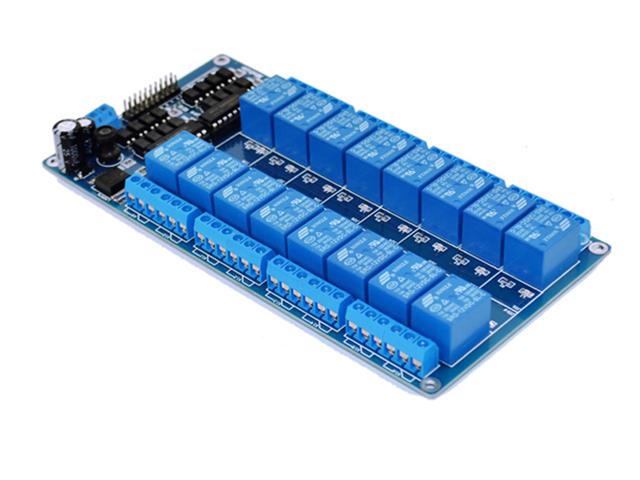

BMT RELAY BOARD 16CH 5V

SKU: BMT RELAY BOARD 16CH 5V

BRAND: Communica

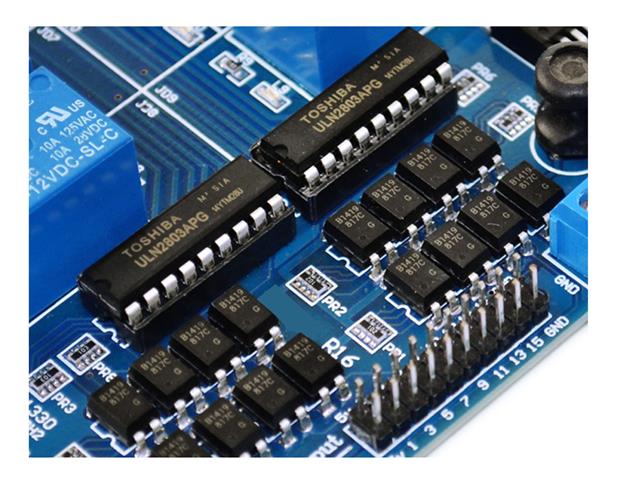

Compatible with Arduino 5V/10A 16CH Relay Module with N/O and N/C contacts with Opto Isolated I/P. (Also for 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL LOGIC).

5V/10A 16CH Relay Module

Features

  • This is a 5V 16-Channel Relay interface board, Be able to control various appliances, and other equipment's with large current. It can be controlled directly by Micro-controller (Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).
  • 5V 16-Channel Relay interface board, and each one needs 50-60mA Driver Current.
  • Equipped with high-current relay, AC250V 10A ; DC30V 10A.
  • Standard interface that can be controlled directly by microcontroller.
  • Indication LED’s for Relay output status.
  • High Level Trigger.

Specifications

  • Number of channels : 16
  • Supply voltage : 5V DC
  • Switched voltage : max. 30V DC, max. 250V AC
  • Contact current max. : 10A
  • Gross weight : 201.2 g

Additional Information

Device Relay Module
Type 5V/10A | 16CH
