BMT REX-C100 TEMP CONT+SSR+HS+TC

Name: BMT REX-C100 TEMP CONT+SSR+HS+TC - Communica [Part No: BMT REX-C100 TEMP CONT+SSR+HS+TC]
Brand: Communica
SKU: BMT REX-C100 TEMP CONT+SSR+HS+TC
Price: 391.30 ZAR
Availability: InStock

SKU: BMT REX-C100 TEMP CONT+SSR+HS+TC

BRAND: Communica

In Stock
R 450.00_{(inc VAT)}
R 391.30_{(ex VAT)}

Collections: New Arrivals, Test & Measurement

Type: Environmental Test Equipment

Category: New, Temperature Controllers

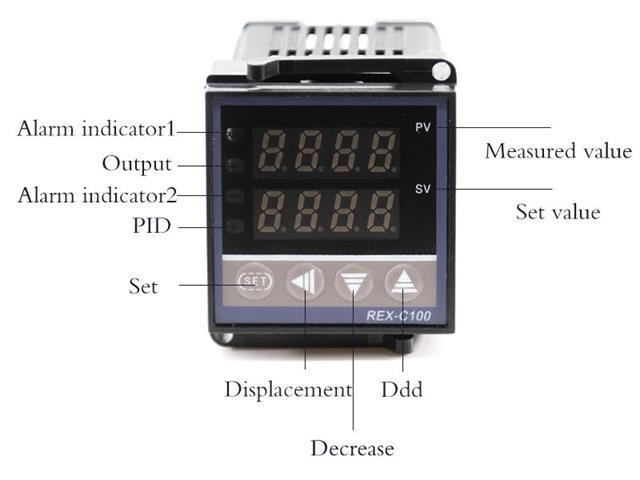

REXC100 Temp Controller + SSR-40DA Solid State Relay + Type K Thermocouple 1m Probe + Heat Sink . Input Voltage：100-240V. Universal Input. Output：SSR (3-32V). Alarm Mode：High Temperature Alarm (Adjustable)

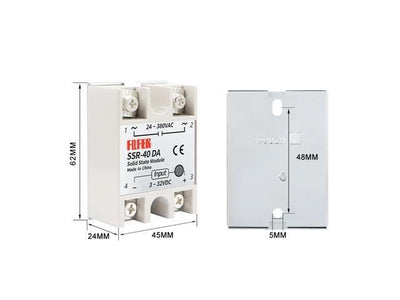

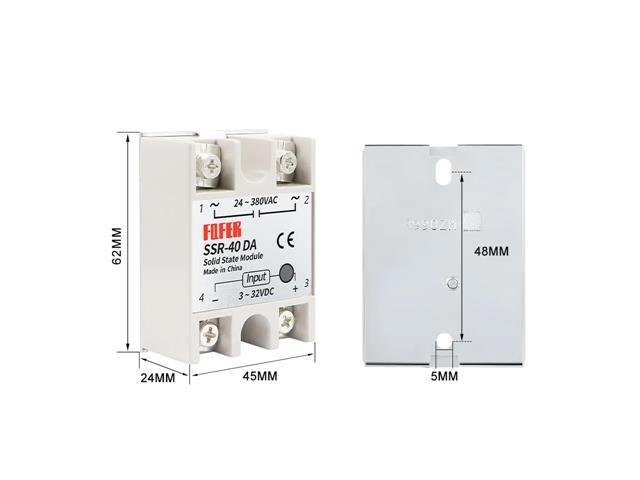

Temp Controller + SSR-40DA Solid State Relay

Specifications

Model: REX-C100FK02-V*AN
Range：Factory settings 0-400°C The highest Can be adjusted to 1300 °C
Size：48*48*110mm
Opening size：45*45mm
Input voltage：100-240V
Output：SSR (3-32V)
Control method：PID Automatic control (Selectable on or off)
Alarm mode：High temperature alarm (Adjustable)
Applicable Thermocouple ：K, J, R, S, B, E, N, T, W5Re/W26Re, PLII
RTD: Pt100, JPt10
Contact output：5A
solid state relay(SSR)：40DA （For power below 4400W）

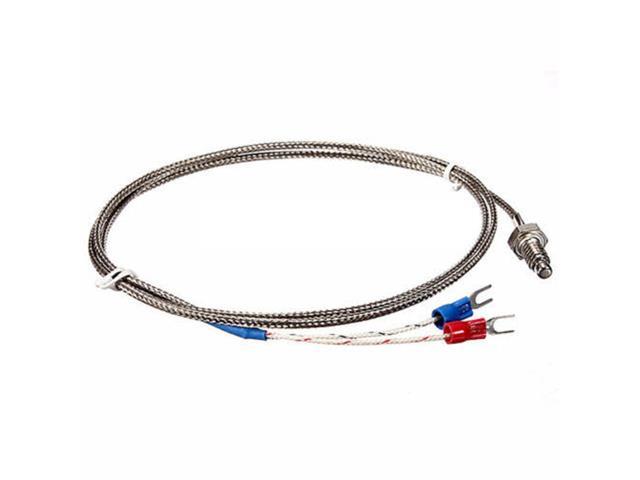

Thermocouple：6mm Thread+1 meter
Heat sink：60mm*49mm*81mm

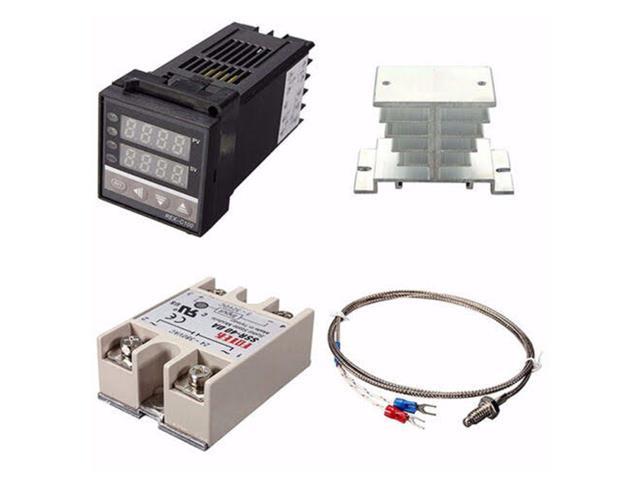

Package Included:（as picture shows）

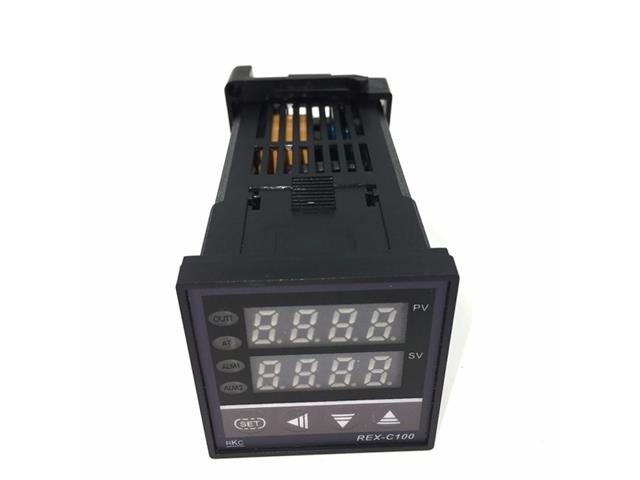

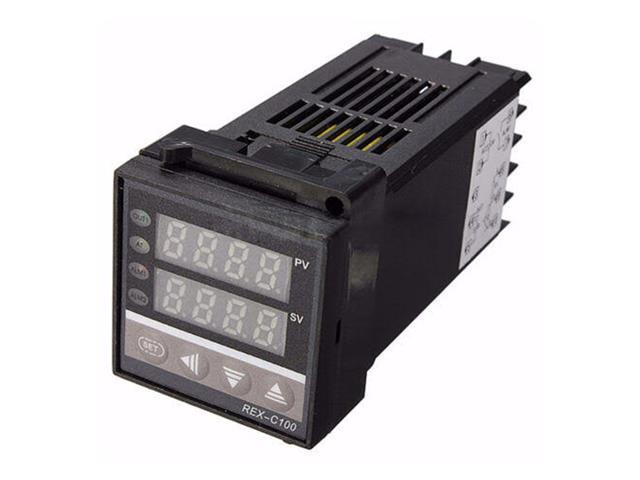

1 x PID Temperature Controller
1 x K Type Probe Sensor
1 x Max.40A SSR
1 X Heat Sink

Downloads

User Manual - REX-C100 PID DIG TEMP CONT

Additional Information

Device	Relay
Type	Temp Controller + SSR-40DA \| Solid State
