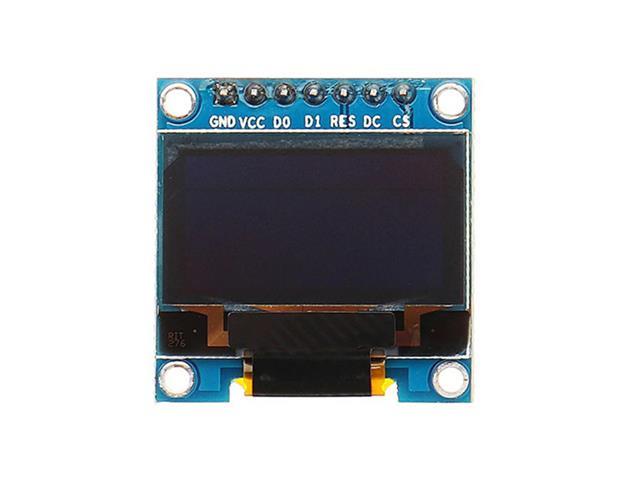

0.96IN OLED Graphic Display 128X64 White on Black SPI (7Pin)
0.96IN OLED Graphic Display
Overview
This is a small high contrast OLED graphics display with 128x64 pixels. The display works with both 5V and 3.3V systems without any modification. The display Driver uses the popular SSD1306 chipset which is well catered for with example code on the internet for many microcontrollers. The example code for the similar Adafruit displays also works.
The code works on Arduino boards as well as the popular Teensy boards.
Specifications
128x64 pixels
SPI interface
5V and 3.3V operation
Board Size : 34mm x 27mm
Visual Area : 23.74 x 12.86mm
Active Area : 21.75(W) x 10.85(H) mm
Diagonal Size : 0.96“
Dot (Pixel) Pitch : 0.17x0.17mm
Display Driver : SSD1306
Contrast Ratio(Typ) : 2000:1
Viewing Angle Range : Left:80.0, Right:80.0, Up:80.0, Down:80.0 degree
Appearance : White on Black
Brightness(Typ) : 120cd/m2
OLED -------- Arduino/Teensy
GND -------- GND
+V -------- 5V/3.3V
DAT -------- SDA
CLK -------- SCL
RST -------- D9 (can be any digital pin)
Generate a splash screen with our BMP to LCD 128x64 Converter
Additional Information
Device
Graphic Display
Type
0.96IN | OLED
Elevate your projects with the BMT SPI 0.96IN OLED 128X64-WH display, featuring high contrast and a compact design. Compatible with both 5V and 3.3V systems, it offers easy integration with Arduino and Teensy boards. Enjoy vibrant visuals and effortless coding with the reliable SSD1306 driver, perfect for all your graphic display needs.
