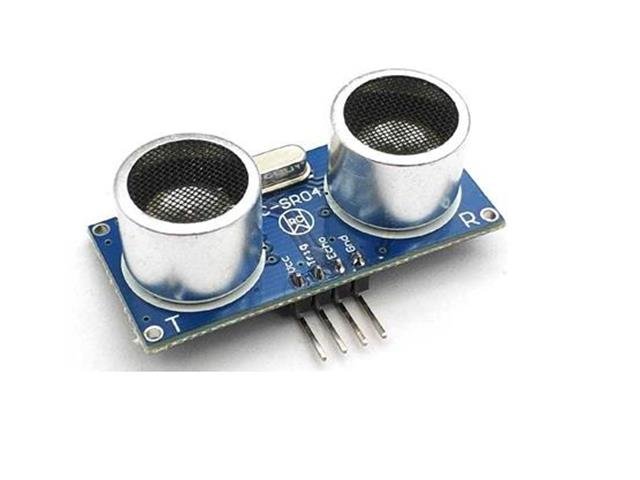

BMT ULTRASONIC SENSOR HC-SR04+

SKU: BMT ULTRASONIC SENSOR HC-SR04+

BRAND: Communica


Ultrasonic Receiver+Transmitter on Board. The HC-SR04+ is a Wide Voltage Operation : 3V-5.5V. Ultrasonic Ranging Module. The Module's External Dimensions and Software are Fully Compatible with the Old Version of the HC-SR04. Industrial Grade MCU, -20°C-80

Ultrasonic Receiver+Transmitter on Board

Overview

The HC-SR04+ Is a Wide Voltage Operation Ultrasonic Ranging Module. The Module's External Dimensions and Software are Fully Compatible with the Old Version of the HC-SR04; It can be Seamlessly Switched with the Old Version of the HC-SR04. The Lowest Operating Voltage is as Low as 3V, Making it Directly Connectable to A 3.3-Powered MCU.

Specifications

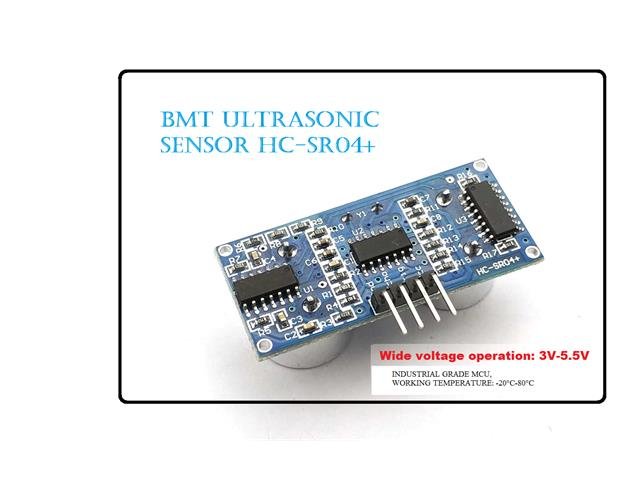

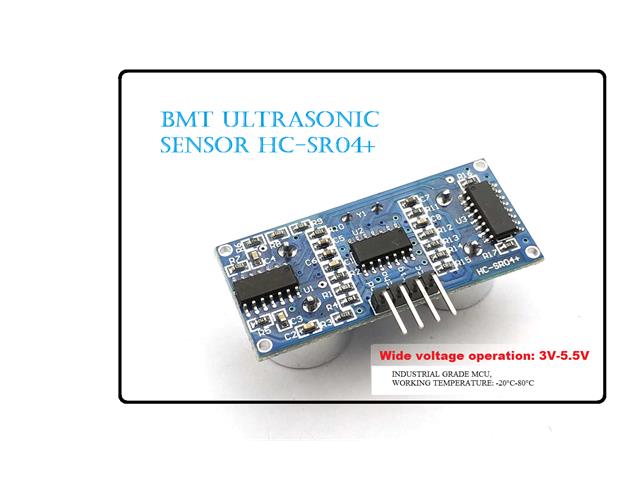

    • Wide Voltage Operation: 3V-5.5V.
    • Fully Compatible with HC-SR04 Software and Hardware Size

Detection Distance:

  • 5V: 2cm-450cm
  • 3.3V: 2cm-400cm
  • Detection Angle: <15°
  • Industrial Grade MCU, Working Temperature: -20°C-80°C

Additional Information

Device Receiver+Transmitter
Type Ultrasonic | Board
