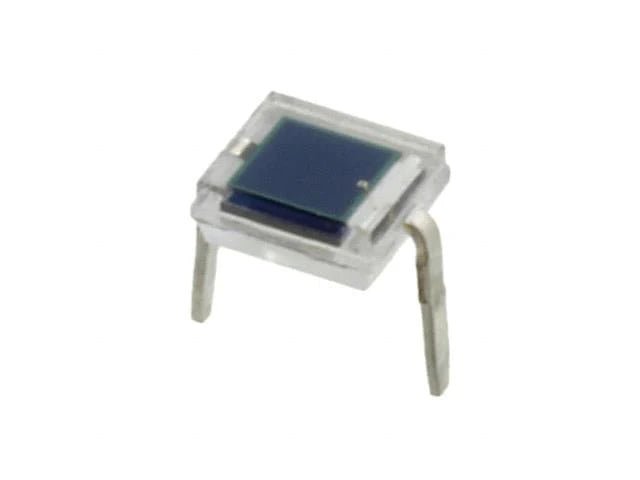

BPW34

SKU: BPW34

BRAND: Vishay

Sold Out
R 30.12_{(inc VAT)}
R 26.19_{(ex VAT)}

Collections: Opto-electronics

Type: Optocouplers, Photodetectors & Photointerrupters

Category: Photo Diode

Silicon PIN Photo Diode 430 to 1100nM 5ns switching 215mW 5,4 x 4,3 Rect. Pkg

Silicon Pin Photo Diode

Feature

Dimensions (L x W x H in mm): 5.4 x 4.3 x 3.2
Radiant sensitive area (in mm2): 7.5
High photo sensitivity
High radiant sensitivity
Suitable for visible and near infrared radiation
Fast response times
Angle of half sensitivity: ϕ = ± 65°

Specifications

Wavelength	900nm
Spectral Range	430nm ~ 1100nm
Diode Type	PIN
Voltage - DC Reverse (Vr) (Max)	60 V
Current - Dark (Typ)	2nA
Active Area	7.5mm²
Viewing Angle	130°
Operating Temperature	-40°C ~ 100°C
Mounting Type	Through Hole
Package / Case	2-DIP

Downloads

Datasheet - BPW34

Additional Information

Device	Photo Diode
Type	Silicon Pin
