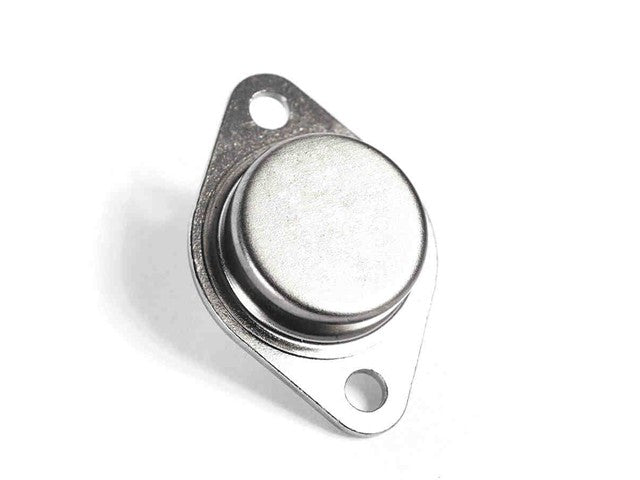

BU226

Name: BU226 - Communica [Part No: BU226]
Brand: Communica
SKU: BU226
Price: 6.25 ZAR
Availability: InStock

SKU: BU226

BRAND: Communica

R 7.19_{(inc VAT)}
R 6.25_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Transistors

Category: NPN Power Transistor

N 2000V 800V 2A 32W TO3

Transistor Silicon NPN

Specifications

Case	TO3
Vbr CEO	800
Max. PD (W)	32
t(f) Max. (S)	700n
Ic Max. (A)	2.0
Icbo Max. @Vcb Max. (A)	1.0m
Polarity	NPN
Derate Above 25°C	400m
Oper. Temp (°C) Max.	125
Pinout Equivalence Number	3-14
Surface Mounted Yes/No	NO
Maximum Collector Power Dissipation (Pc)	125 W
Maximum Collector-Base Voltage \|Vcb\|	2000 V
Maximum Collector-Emitter Voltage \|Vce\|	800 V
Maximum Collector Current \|Ic max\|	10 A
Max. Operating Junction Temperature (Tj)	200 °C
Forward Current Transfer Ratio (hFE), MIN	10

Additional Information

Device

Transistor

Discover the BU226 TO3 Transistor, a powerful NPN solution with a maximum collector power dissipation of 32W and operating temperatures up to 125°C. Ideal for high-voltage applications, it delivers reliability with a collector-emitter voltage of 800V and collector-base voltage of 2000V. Upgrade your circuits with this robust transistor for enhanced performance and efficiency.
