SKU: BUD-40/2

BRAND: Zjbeny

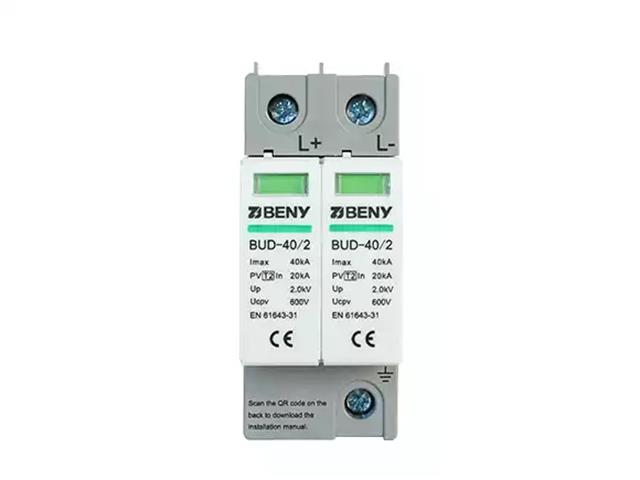

ZJBENY PV 2 Pole Surge Protector 600VDC, DIN Rail , Max Discharge Current 40KA, Type II, IP20

2 Pole Surge Protector 600VDC


PV DC BUD-40/2 Surge Protection Device was designed and manufactured, complying with the PV standard EN50539-11. It is widely used in PV DC combiner box, inverter, controller and PV DC cabinet. Rated voltage 600V DC. Maximum discharge current 40KA, High Energy Varistor, highly effective for lightning protection.


  • Suitable for use in all Photovoltaic Systems
  • Prewired Modular Complete Unit, consisting of a Base Part and Plug-in Protection
  • Plug-in Protection module, easy installation and maintenance
  • High Energy Varistor. Response time less than 25 nanosecond
  • Optimal remote signalling Contact (FM) for monitoring device (Floating Changeover Contact)
  • Din Rail Mounting TH35-7.5/DIN35
  • Comply with: EN50539

Additional Information

Device Surge Protector
Type 2 Pole | 600VDC
